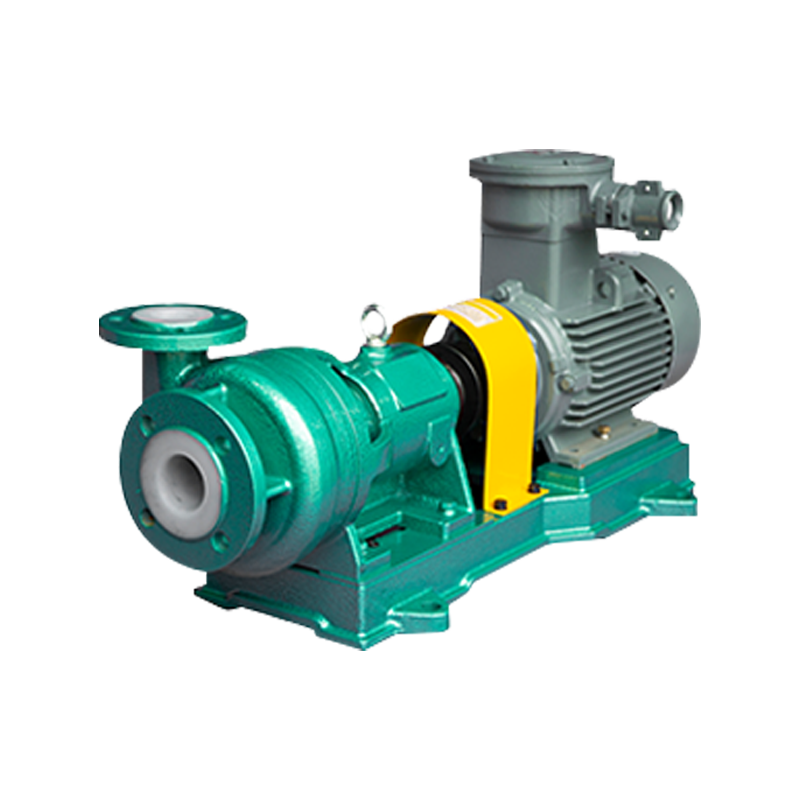

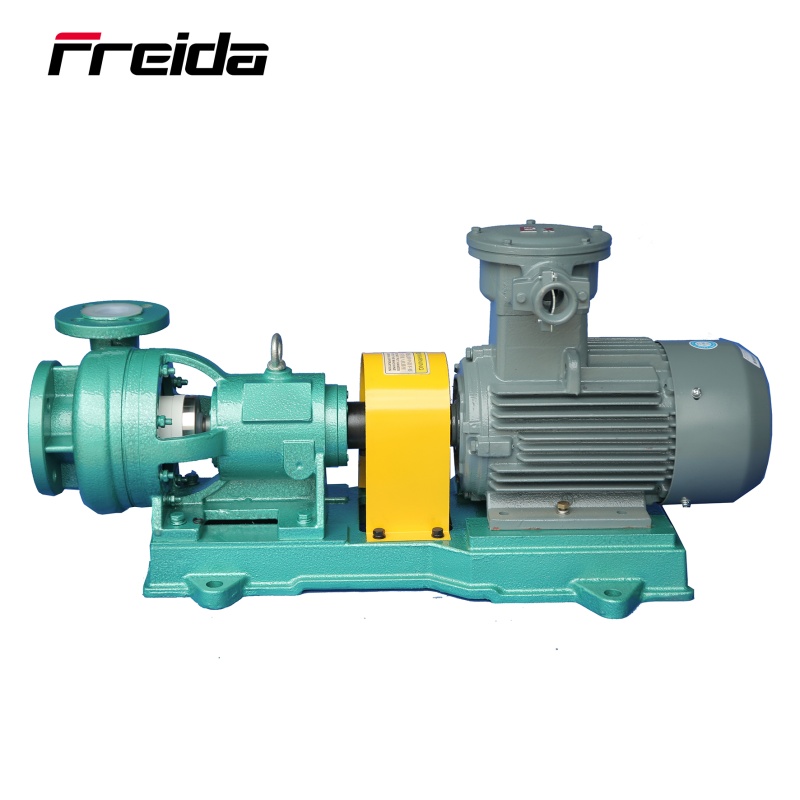

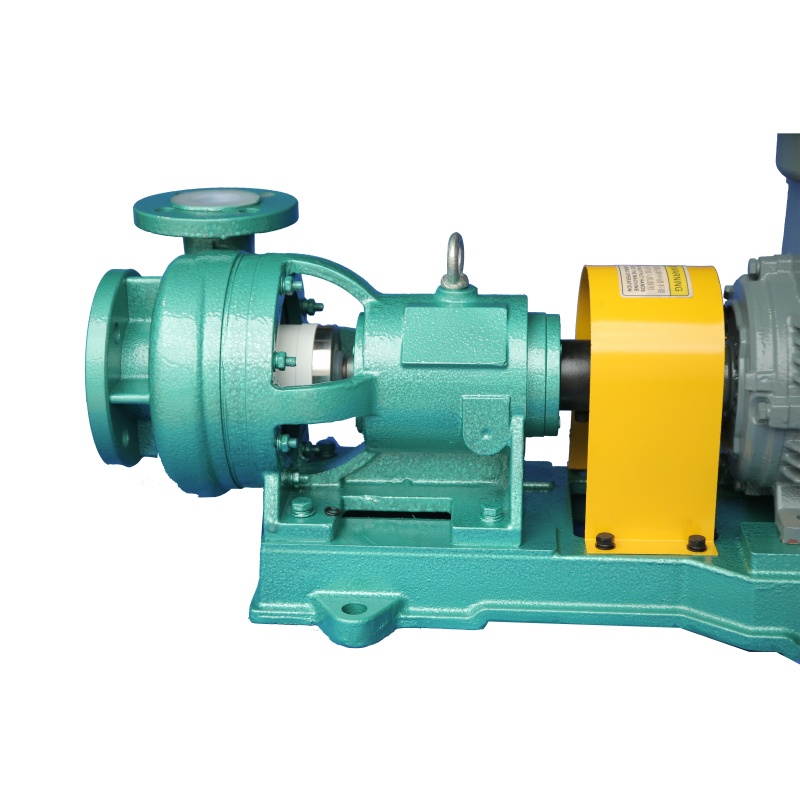

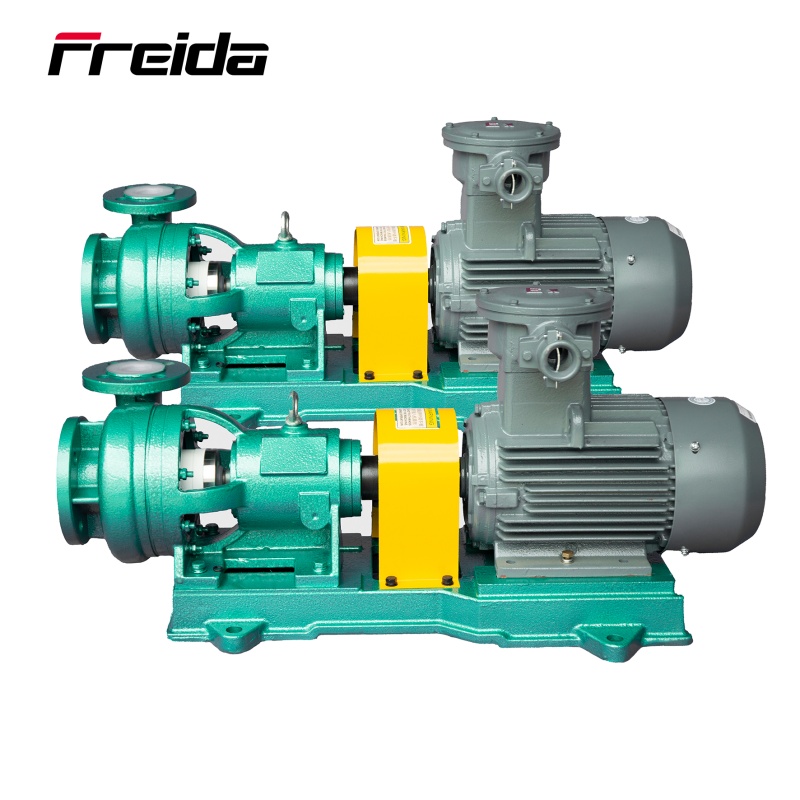

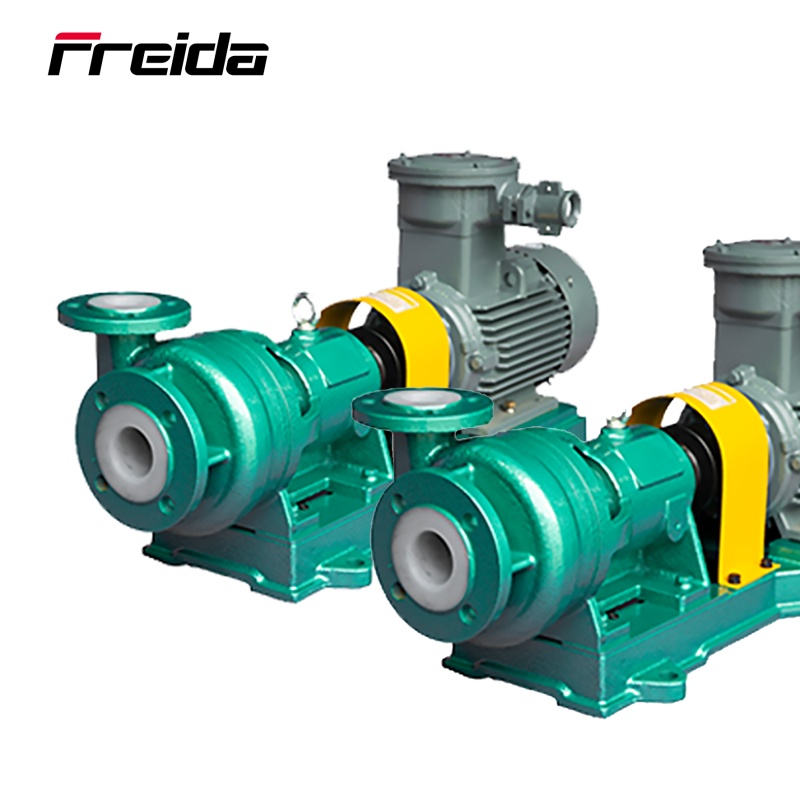

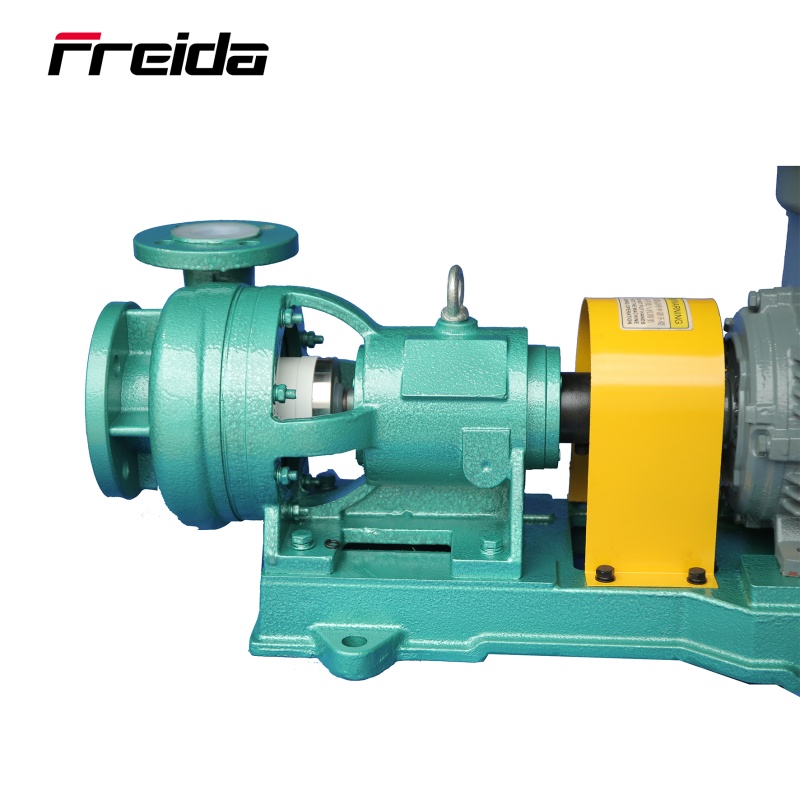

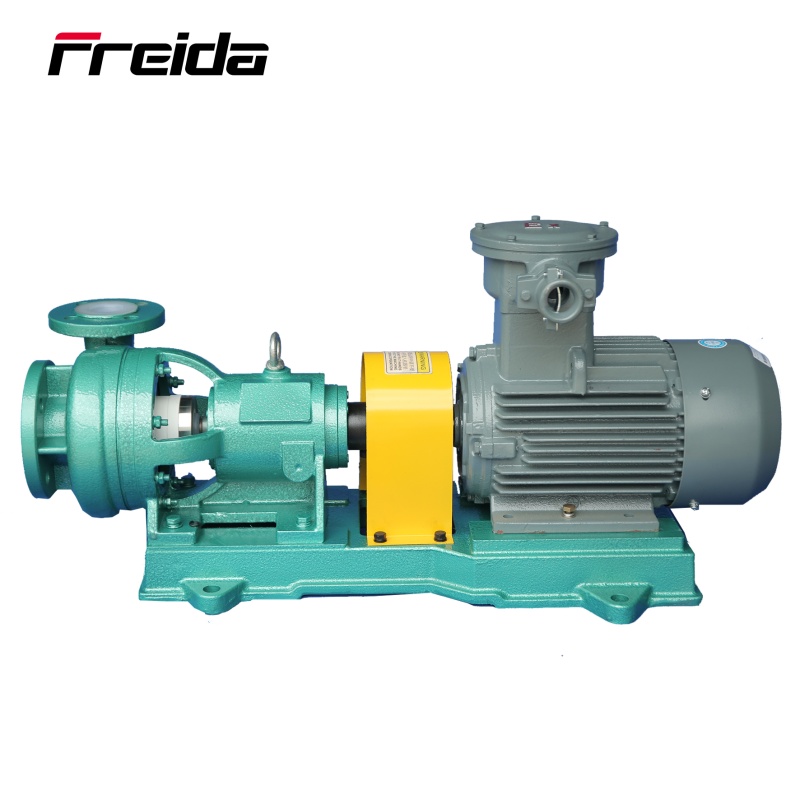

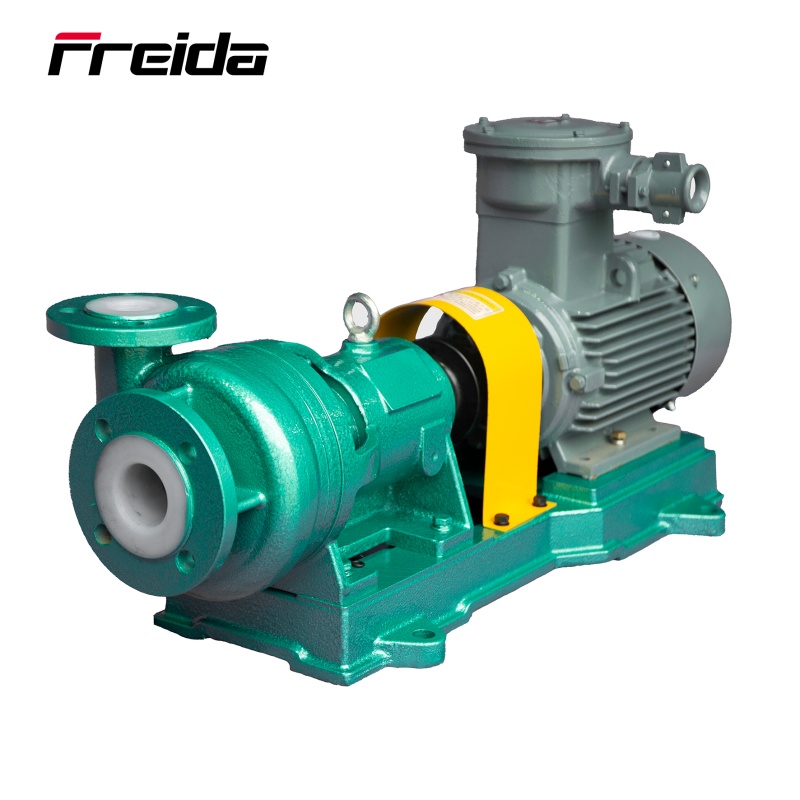

FSB High-Performance Fluorine Plastic Centrifugal Pump

Applicable temperature:-20° C-120° C

FSB series fluorine plastic centrifugal pump.  The pump body, impeller, and pump cover are used using metal inserts and outsourcing fluorine plastic pressing. The shaft seal uses an advanced exterior bellows mechanical seal,  easily adjustable.  This product is compact, stable, and reliable performance.  Widely used in acid and alkali manufacturing, acid pickling, spray paint process, and wastewater. Treatment, electroplating, pesticide, electrolyte transport in non-ferrous metal smelting, ionic membrane project of chlorine water transportation industry.

+ Contact us + Catalogue Download

Product Description

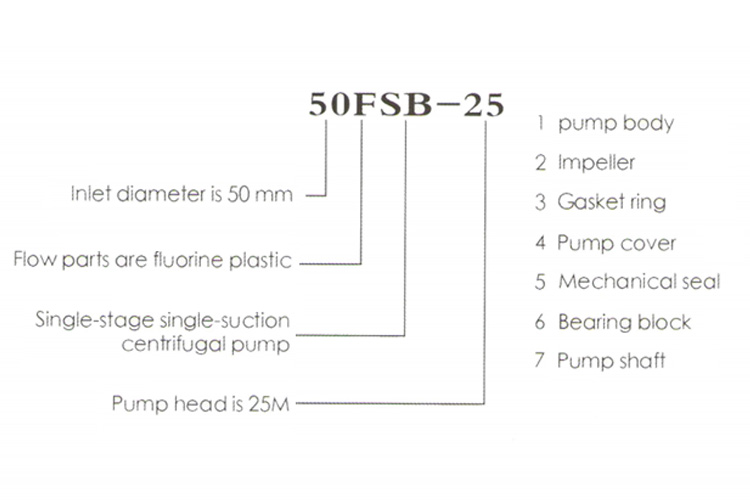

IHF (D) Model sense&Structure and material

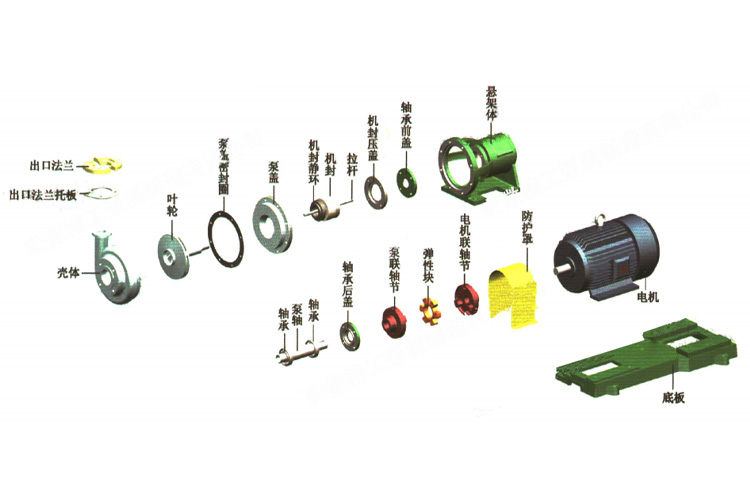

Structure and material

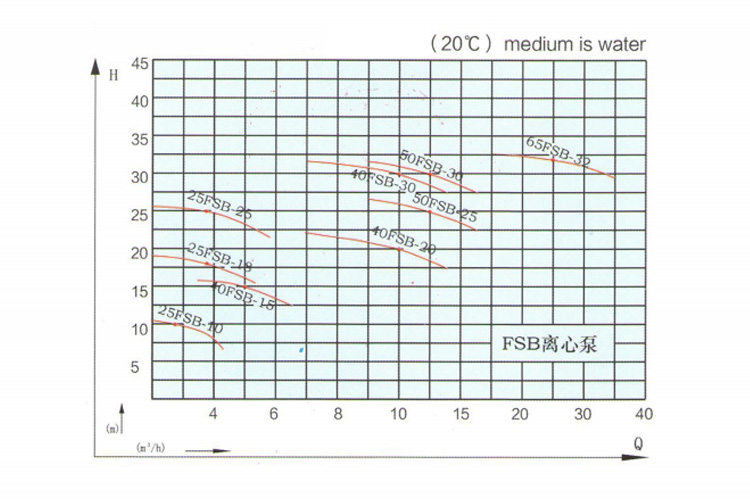

(n=2900r/min)Performance Curve Diagram

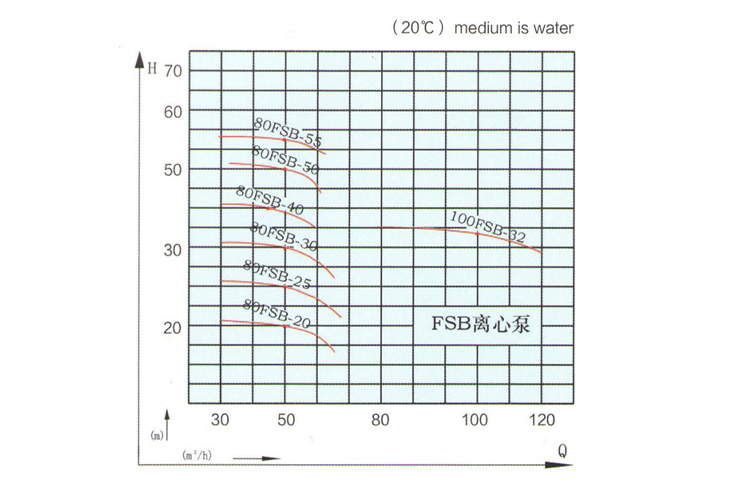

(n=2900r/min)Performance Curve Diagram

Model and technical date

Number Model Rev=2900r/min  Medium density=1000kg/m³
Flow
(m³/h)		 Pump head
(m)		 η
(%)		 Inlet
(mm)		 Outlet
(mm)		 Npsh
(m)		 Power
(kw)		 Weight
(kg)
1  25FSB-10 1  11  25  Φ25 Φ20 3.0  1.5  48
1.5  10
2  7
2  25FSB-18 2  20  27  Φ25 Φ20 3.0  2.2  48
3.6  18
6  17
3  25FSB-25 2  26  27  Φ25 Φ20 3.0  2.2  48
3.6  25
6  23
4  40FSB-15 3.5  16  40  Φ40 Φ32 3.0  3  75
5  15
8  13
5  40FSB-20 3.5  22  42  Φ40 Φ32 3.0  3  75
5  20
8  17
6  40FSB-30 8  31  42  Φ40 Φ32 3.0  3  75
10  30
12  27
7  50FSB-25 8  26  43  Φ50 Φ32 3.5  3  75
12.5  25
15  26
8  50FSB-30 8  31  42  Φ50 Φ32 3.5  3  75
12.5  30
15  26
9  65FSB-32 15  33  45  Φ65 Φ50 3.5  5.5  120
25  32
30  27
10  80FSB-20 35  21  45  Φ80 Φ65 3.5  5.5  130
50  20
60  17
11  80FSB-25 35  26  50  Φ80 Φ65 3.5  7.5  145
50  25
60  20
12  80FSB-30 35  31  59  Φ80 Φ65 4.0  7.5  145
50  30
60  27
13  80FSB-40 35  41  48  Φ80 Φ50 4.0  11  195
50  40
60  35
14  80FSB-50 35  52  57  Φ80 Φ50 4.0  15  210
50  50
60  40
15  80FSB-55 35  56  50  Φ80 Φ50 4.0  18.5  230
50  55
60  45
16  100FSB-32 65  35  68  Φ100 Φ80 3.5  15  250
100  32
110  26

Install size/flange size

Number Model External mounting dimensions
L B S P A W T Y Q H h f x m 4-ΦC
1 25FSB-10 786 610 455 85 107 325 285 280 250 287 162 58 82 180 4-Φ16
2 25FSB-18 786 610 455 85 107 325 285 280 250 287 162 58 82 180 4-Φ16
3 25FSB-25 786 610 455 85 107 325 285 280 250 287 162 58 82 180 4-Φ16
4 40FSB-15 786 610 455 85 107 325 285 280 250 287 162 58 82 180 4-Φ16
5 40FSB-20 786 610 455 85 107 325 285 280 250 287 162 58 82 180 4-Φ16
6 40FSB-30 786 610 455 85 107 325 285 280 250 287 162 58 82 180 4-Φ16
7 50FSB-25 786 610 455 85 107 325 285 280 250 287 162 58 82 180 4-Φ16
8 50FSB-30 786 610 455 85 112 325 280 275 230 287 162 58 82 180 4-Φ16
9 65FSB-32 940 715 480 130 142 370 330 290 250 347 197 74 95 210 4-Φ16
10 80FSB-20 980 715 480 130 142 370 330 290 250 347 197 74 95 210 4-Φ16
11 80FSB-25 980 715 480 130 142 370 330 285 250 347 197 74 95 210 4-Φ16
12 80FSB-30 980 715 480 130 142 365 330 340 240 347 197 74 95 210 4-Φ16
13 80FSB-40 1096 840 660 90 142 430 390 340 300 410 230 85 118 265 4-Φ16
14 80FSB-50 1096 855 655 100 142 430 400 340 310 410 230 85 118 265 4-Φ16
15 80FSB-55 1141 840 830 90 142 430 390 340 300 410 230 85 118 265 4-Φ16
16 100FSB-32 1320 1270 830 215 142 500 440 350 440 500 280 100 118 265 4-Φ24

Install size/flange size

Number Model Imported flange size Export flange size
c a b e n-d k g i j n-t
1  25FSB-10 25  100  85  18  4-M10 20  100  75  15  4-Φ11.5
2  25FSB-18 25  100  85  18  4-M10 20  100  75  15  4-Φ11.5
3  25FSB-25 25  130  100  18  4-M12 20  112  90  18  4-Φ11.5
4  40FSB-15 40  130  100  18  4-M12 32  112  90  18  4-Φ11.5
5  40FSB-20 40  130  100  18  4-M12 32  112  90  18  4-Φ11.5
6  40FSB-30 40  130  100  18  4-M12 32  112  90  18  4-Φ11.5
7  50FSB-25 50  130  100  18  4-M12 32  112  90  18  4-Φ11.5
8  50FSB-30 50  130  100  18  4-M12 32  112  90  18  4-Φ11.5
9  65FSB-32 65  185  150  18  4-M12 50  160  130  22  4-Φ12
10  80FSB-20 80  185  150  18  4-M12 65  160  130  22  4-Φ12
11  80FSB-25 80  185  150  18  4-M12 65 160  130  22  4-Φ12
12  80FSB-30 80  185  150  18  4-M12 65 160  130  20  4-Φ13
13  80FSB-40 80  190  150  18  4-Φ16 50  170  125  20  4-Φ17.5
14  80FSB-50 80  190  150  18  4-Φ17.5 50  170  125  20  4-Φ17.5
15  80FSB-55 80  190  150  20  4-Φ17.5 50  170  125  20  4-Φ17.5
16  100FSB-32 100  220  180  25  4-M16 80  200  165  25  4-M16
