Home / Product / Centrifugal pump / Fluorine lined centrifugal pump / IHF(D) Short Bracket Centrifugal Pump

IHF(D) Short Bracket Centrifugal Pump Manufactuers

View Products Contact Us
  • IHF(D) Short Bracket Centrifugal Pump
  • IHF(D) Short Bracket Centrifugal Pump
  • IHF(D) Short Bracket Centrifugal Pump
  • IHF(D) Short Bracket Centrifugal Pump
  • IHF(D) Short Bracket Centrifugal Pump
  • IHF(D) Short Bracket Centrifugal Pump
Fluorine lined centrifugal pump

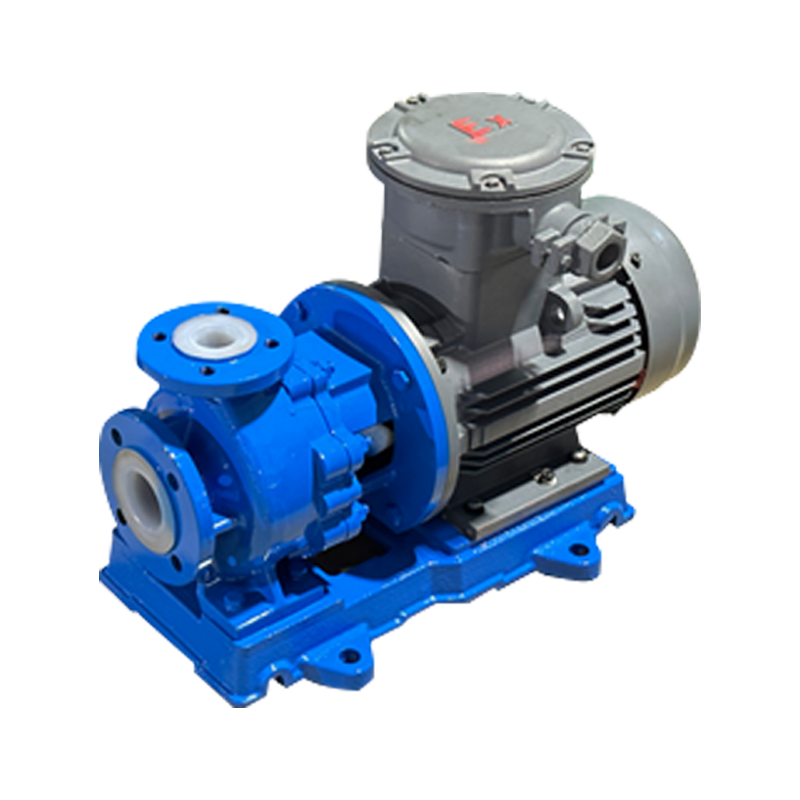

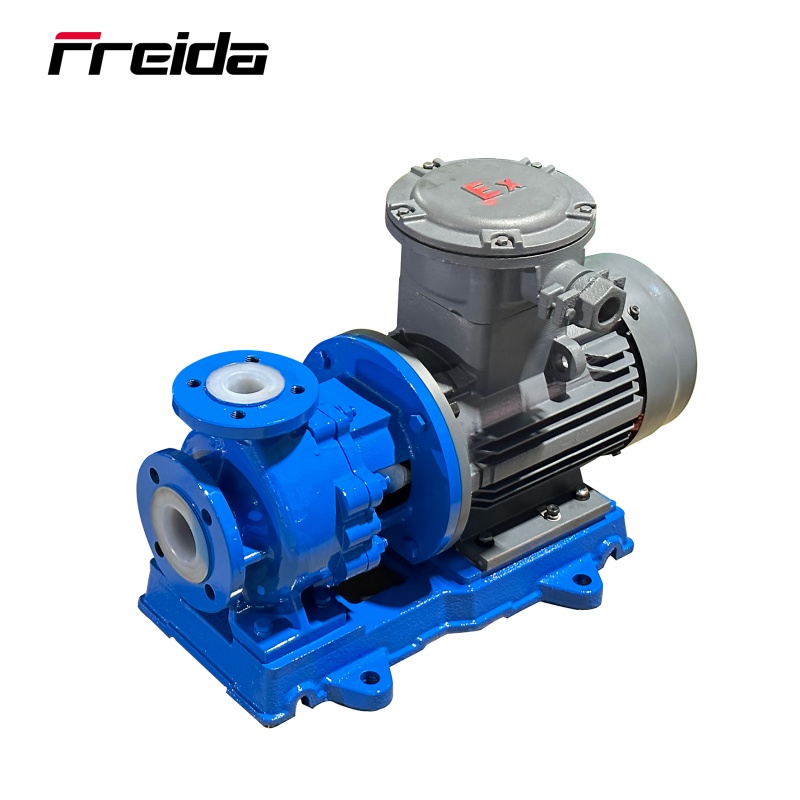

IHF(D) Short Bracket Centrifugal Pump

Applicable temperature:-20℃~150℃.

The IHF(D) centrifugal pump is a derivative of the IHF centrifugal pump, which is developed to meet the performance requirements of the IHF centrifugal pump and is subject to the restrictions of the work site. All parts are made of fluorine plastic or fluorine plastic alloy, wide range of corrosion resistance; The matrix is made of metal with strong bearing capacity. The shaft seal adopts advanced WB2 external bellows mechanical seal and reliable sealing performance; With short support directly connected structure, blade shaft, and motor shaft using reliable Morse taper torque transmission, the pump covers a small area. This product is widely used in: the pickling, and painting process in automobile manufacturing; Electrolyte transport in non-ferrous metal smelting; ionic membrane caustic soda projects in chlorine water, wastewater treatment, and acid-adding processes.

+ Contact us + Catalogue Download

Product Description

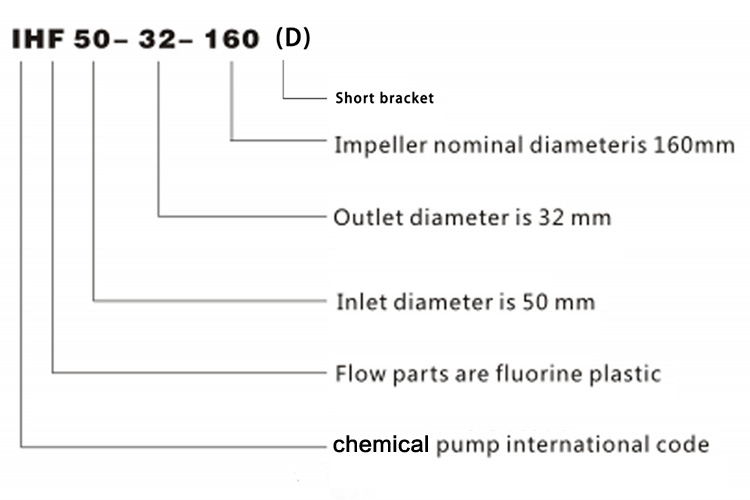

IHF (D) Model sense&Structure and material

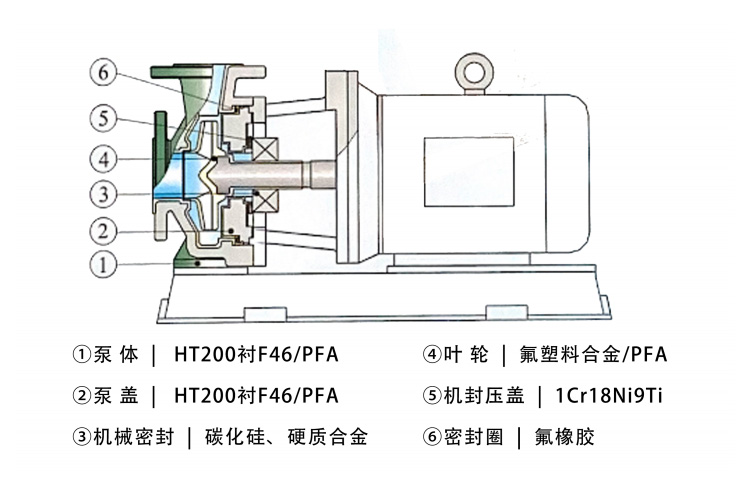

Structure and material

Model and technical date

"*" is the standard parameter.

Number Model Flow
m³/h		 Lifting Capacity（m） Efficiency
%

NPSH
m

 Inlet×
Outlet		 Motor Power Weight
1  IHF25-20-125(D) 1  21  15  2.5  25x20 1.5  45
1.6  20  18
2.5  17 36
2  IHF32-20-125(D) 2  21  20  2.5  32x20 1.5  45
3.2 20 32
5.5  17 38
3  IHF40-25-125(D) 4.5  21  26  2.5  40x25 1.5  45
6.3  20  30
8 17 30
4  IHF40-25-160(D) 4.5  34  22  3.0  40x25 3  85
6.3  32  30
8  27 31
5  IHF40-25-200(D) 4.5  52  16  3.0  40x25 5.5  130
6.3 50 20
8  46  23
6  IHF40-25-250(D) 4.5  85  13  3.8  40x25 11  195
6.3  80  20
8 72 24
7  IHF50-32-125(D) 8  21 47  3.2  50x32 3  90
12.5  20 52
15  17 50
8  IHF50-32-160(D) 8 34 35 3.2  50x32 4  95
12.5  32 47
15  2  47
9  IHF50-32-200(D) 8  52  28  3.2  50x32 7.5  135
12.5  50 40
15  46  48
10  IHF50-32-250(D) 8  85  21 4.2  50x32 11  195
12.5  80  34
15 72 38
11  IHF65-50-125(D) 18  21 46  3.5  65x50 3  90
25  20  61
30  17 67
12  IHF65-50-160(D) 18 34 45 3.5  65x50 5.5  125
25  32  56
30  27 65
13  IHF65-40-200(D) 18  52  35  3.5  65x40 11  150
25 50 51
30  46  48
14  IHF65-40-250(D) 18  85  35  3.5  65x40 18.5  250
25  80  48
30 72 50
15  IHF80-65-125(D) 35  21 52  4.0  80x65 5.5  125
50  20  65
60  17 70
16  IHF80-65-160(D) 35 34 60 4.0  80x65 11  160
50  32  64
60  27 53
17  IHF80-50-200(D) 35  52  55  4.0  80x50 15  180
50 50 63
60  46  55
18  IHF80-50-250(D) 35  85  48  4.5  80x50 30  390
50  80  56
60 72 50
19  IHF100-80-125(D) 75  21  62  4.5  100x80 11  180
100  20  65
110  17 68
20  IHF100-80-160(D) 75 34 65 4.8  100x80 18.5  200
100  32  70
110  27 65
21  IHF100-65-200(D) 75  21 62  4.8  100x65 30  400
100 50 68
110  46  56
22  IHF125-80-160(D) 120  34  57  5.0  125x80 30  380
160  32  64
175  27  52

Install size/flange size

Two-stage motor 2900r/min, Flange standard number HG/T20592-2009, 1.6MPa RF.

Number Model Imported flange size Export flange size
c a b e n-Φd k g i j n-Φt
1  IHF 25-20-125(D) 25 115 85  18  4-Φ14 20  105  75  18 4-M12
2  IHF 25-20-160(D)
3  IHF 25-20-250(D)
4  IHF 32-20-125(D) 32  140  100  4-Φ18
5  IHF 40-25-125(D) 40 150  110 20  4-M16 25  115  85
6  IHF 40-25-160(200)(D)
7  IHF 40-32-250(D) 32  140  100  4-M16
8  IHF 50-32-125(160)(D) 50 165  125 4-Φ18
9  IHF 50-32-200(250)(D)
10  IHF 65-50-125(160)(D) 65 185  145 8-Φ18 50  165  125  20
11  IHF 65-40-200(250)(D) 40  150  110  18
12  IHF 80-65-125(160)(D) 80 200 160 65  185  145  20 8-M16
13  IHF 80-50-200(250)(D) 50  165  125  4-M16
14  IHF 100-80-125(D) 100 220 180 22  80  200  160  8-M16
15  IHF 100-80-160(D) 8-M16
16  IHF 100-65-200(D) 8-Φ18 65  185  145
17  IHF 125-80-160(D) 125  250  210  80  200  160
+ Understand detailed product parameters
