  • CQG Fluorine-Lined Magnetic Pipeline Pump

CQG Fluorine-Lined Magnetic Pipeline Pump

Applicable temperature: -20℃~120℃

The compact structure of the pump and the integration of the machine and pump can be installed as long as the import and export flanges are installed, without adjustment, avoiding the dislocation of the coupling in the transport of the pump and the trouble of readjusting the coupling after installation. Various types of static sealing materials, completely eliminate the worry of dripping, and will never pollute the work site. Reinforced isolation sleeve made of carbon fiber reinforced special non-metallic material, high strength, good toughness, safe, reliable, no magnetic eddy current, Thus, there is no magnetic spiral flow heat consumption, and efficient and energy-saving magnetic coupling is directly installed on the motor shaft, canceling the traditional bearing box, thereby reducing the mechanical loss generated by the bearing, improving the efficiency of the pump, reducing the noise of the pump, more stable operation, simple installation and convenient maintenance. This product is suitable for the vertical structure of the pipeline pump, combined with special materials. It can transport any concentration of acid, alkali, salt, and organic solvent containing 2% particles with a particle size of no more than 0.5MM, which maximizes the application of fluorine-lined magnetic pumps in the chemical industry.

+ Contact us + Catalogue Download

Product Description

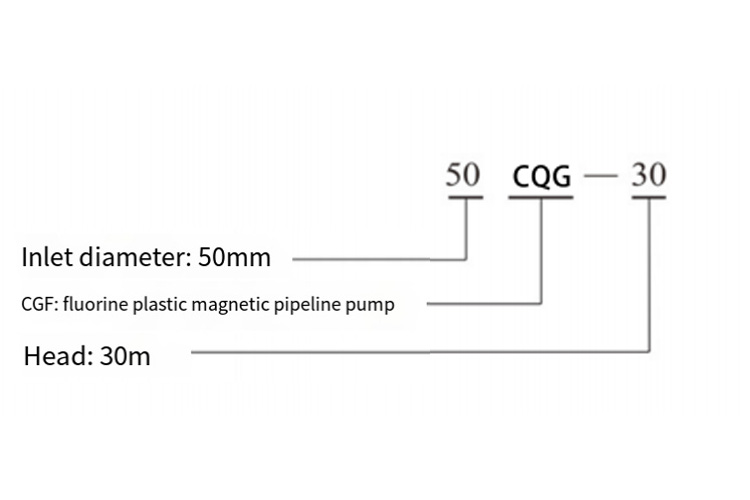

CQG Structure and material & Model sense

Model and technical date

Model Flow
(m³/h)		 Head
(m)		 η
(%)		 Cavitation allowance
(m)		 Import × export
(mm)		 Rotational Speed
(r/min)		 Motor power
32CQG-20 3.6 20 25 3.0 32×32 2900 2.2
32CQG-32 3.6 32 20 3.0 32×32 2900 2.2
40CQG-20 6.3 20 45 3.0 40×40 2900 3
40CQG-32 6.3 32 42 3.0 50×50 2900 4
50CQG-20 12.5 20 51 3.0 50×50 2900 3
50CQG-32 12.5 32 46 3.5 65×65 2900 4
50CQG-45 12.5 45 62 3.5 50×50 2900 7.5
65CQG-20 25 20 52 4.0 65×65 2900 5.5
65CQG-32 25 32 57 4.0 65×65 2900 5.5
65CQG-45 25 45 52 4.0 65×65 2900 11
80CQG-20 50 20 65 4.0 80×80 2900 5.5
80CQG-32 50 32 63 4.5 80×80 2900 7.5
80CQG-45 50 45 54 4.5 80×80 2900 15
100CQG-32 100 32 64 4.5 100×100 2900 15
100CQG-45 100 45 65 4.5 100×100 2900 30
125CQG-45 200 45 62 4.5 125×125 2900 30
+ Understand detailed product parameters
