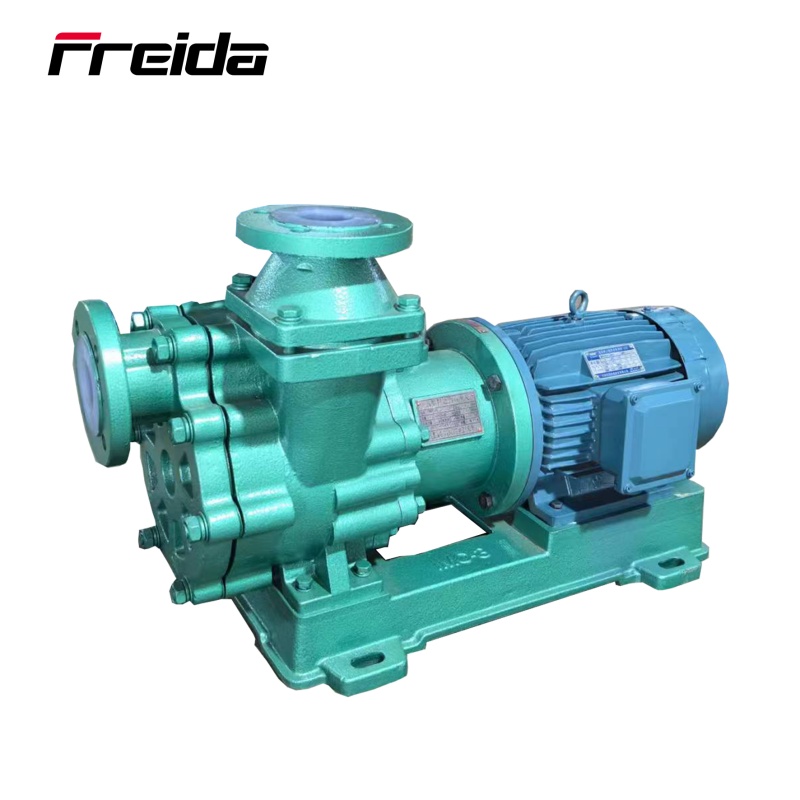

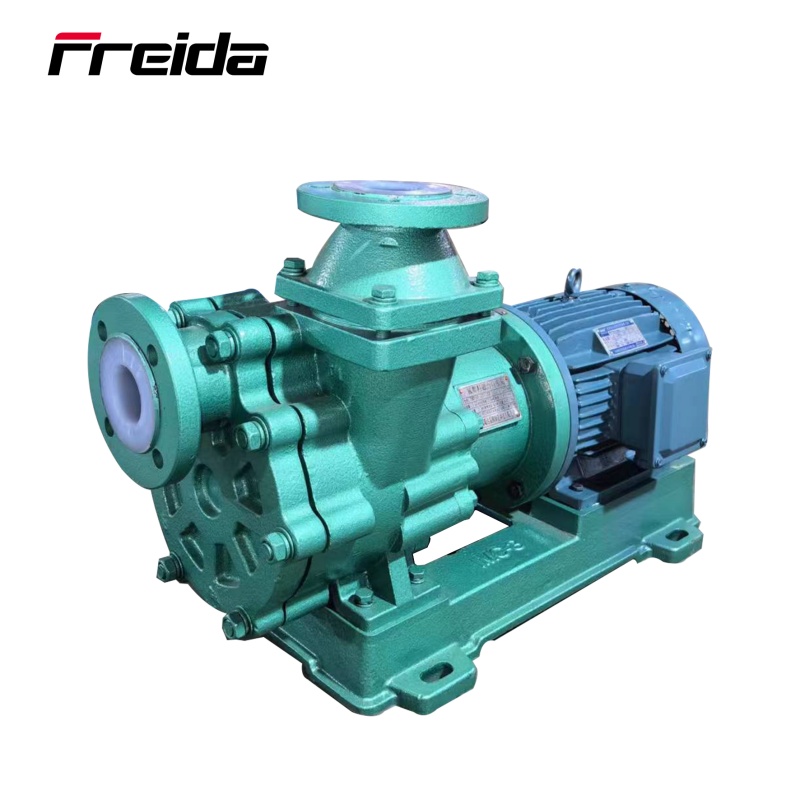

ZMD series self-priming fluorine plastic magnetic pump is the perfect combination of self-priming pump and magnetic pump.using magnetic coupling drive,without dynamic seal point,solving general shaft drive centrifugal pump seal outside run,drip problem. Also has good self-priming function.lts flow components are using corrosion-resistant fluorine materials.lt is widely used in medicine,food,alkali,printing and dyeing,coating and other industries and explosive,volatile,toxic transport,organic solvents and precious liquid.
Applicable temperature: -20℃-100℃

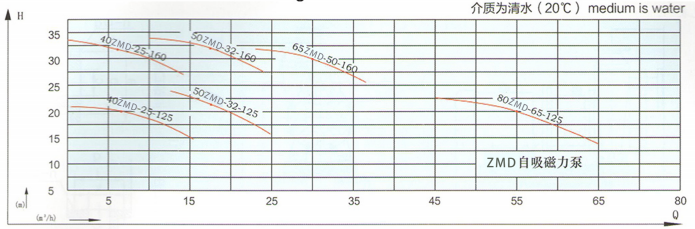

| Model | (Rev)=2900r/min Medium density=1000kg/m³ | |||||||||
| Flow (m³/h) |
Pump head (m) |
η (%) |
Inlet (mm) |
Outiet (mm) |
Npsh (m) |
Power (kw) |
self-priming height(m) |
self-priming time(s) |
||
| 1 | ZMD 40-32-125 | 5 |
22 |
42 | Φ40 | Φ32 | 3.0 | 2.2 | 3 | 150 |
6.3 |
20 |
|||||||||
| 7 | 10 | |||||||||
| 2 | ZMD40-32-160 | 3 | 34 | 24 | Φ40 | Φ32 | 3.0 | 4 | 3 | 150 |
6.3 |
32 |
|||||||||
7.5 |
28 |
|||||||||
| 3 | ZMD 50-40-125 | 10 |
22 |
42 | Φ50 | Φ40 | 3.0 | 2.2/3 | 3 | 150 |
12.5 |
20 |
|||||||||
15 |
18 |
|||||||||
| 4 | ZMD50-32-160 | 10 | 34 | 48 | Φ50 | Φ32 | 3.5 | 5.5 | 3 | 150 |
12.5 |
32 |
|||||||||
| 15 | 26 | |||||||||
| 5 | ZMD65-50-160 | 15 | 32 | 55 | Φ65 | Φ50 | 4.0 | 7.5 | 3 | 150 |
| 25 | 30 | |||||||||
| 30 | 25 | |||||||||
| 6 | ZMD80-65-125 | 35 | 28 | 48 | Φ80 | Φ65 | 4.5 | 7.5 | 3 | 180 |
| 50 | 20 | |||||||||
| 55 | 12 | |||||||||

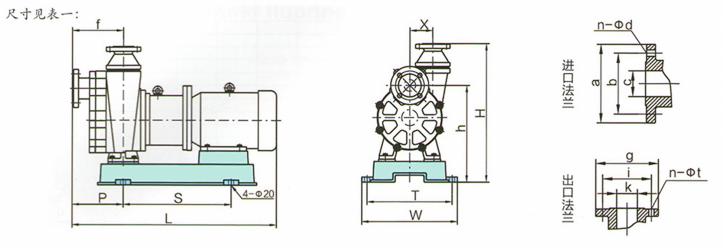

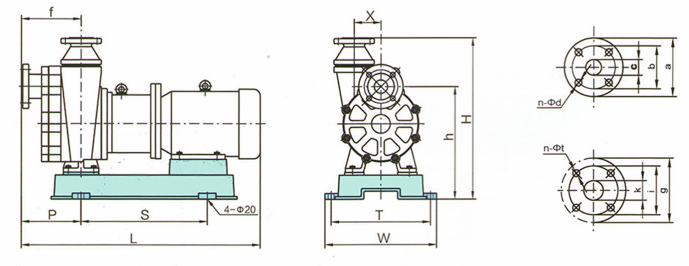

| Model | Outside and installing size | Inlet flange size | Outlet flange size | |||||||||||||||
| L | S | P | f | W | T | H | h | X | C | a | b | n-Φd | k | g | i | n-Φt | ||
| 1 | ZMD40-32-160 | 756 | 275 | 180 | 185 | 240 | 190 | 450 | 270 | 95 | 40 | 150 | 110 | 4-Φ17.5 | 32 | 140 | 100 | 4-Φ14 |
| 2 | ZMD50-32-160 | 889 | 470 | 222 | 222 | 416 | 370 | 610 | 420 | 100 | 50 | 165 | 125 | 4-Φ17.5 | 32 | 140 | 100 | 4-Φ17.5 |
| 3 | ZMD60-50-160 | 889 | 470 | 222 | 222 | 416 | 370 | 590 | 420 | 100 | 65 | 185 | 145 | 4-Φ17.5 | 50 | 165 | 125 | 4-Φ17.5 |
| 4 | ZMD80-65-125 | 970 | 430 | 355 | 215 | 470 | 435 | 550 | 370 | 110 | 80 | 200 | 160 | 8-Φ17.5 | 65 | 185 | 145 | 4-Φ17.5 |

| Model | Outside and installing size | Inlet flange size | Outlet flange size | |||||||||||||||
| L | S | P | f | W | T | H | h | X | C | a | b | n-Φd | k | 9 | n-Φt | |||
| 1 | ZMD40-32-125 | 684 | 400 | 170 | 208 | 340 | 305 | 510 | 300 | 94 | 40 | 150 | 110 | 4-Φ17.5 | 32 | 140 | 100 | 4-Φ17.5 |
| 2 | ZMD50-40-125 | 684 | 400 | 170 | 208 | 340 | 305 | 510 | 300 | 94 | 50 | 165 | 125 | 4-Φ17.5 | 40 | 150 | 110 | 4-Φ17.5 |
