Self priming pump lined with fluorine

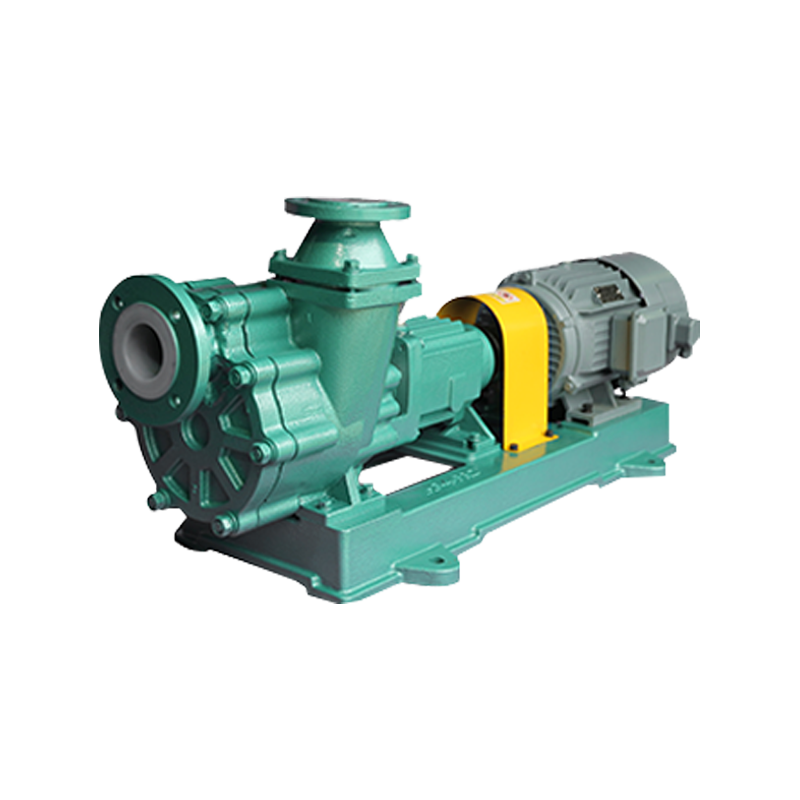

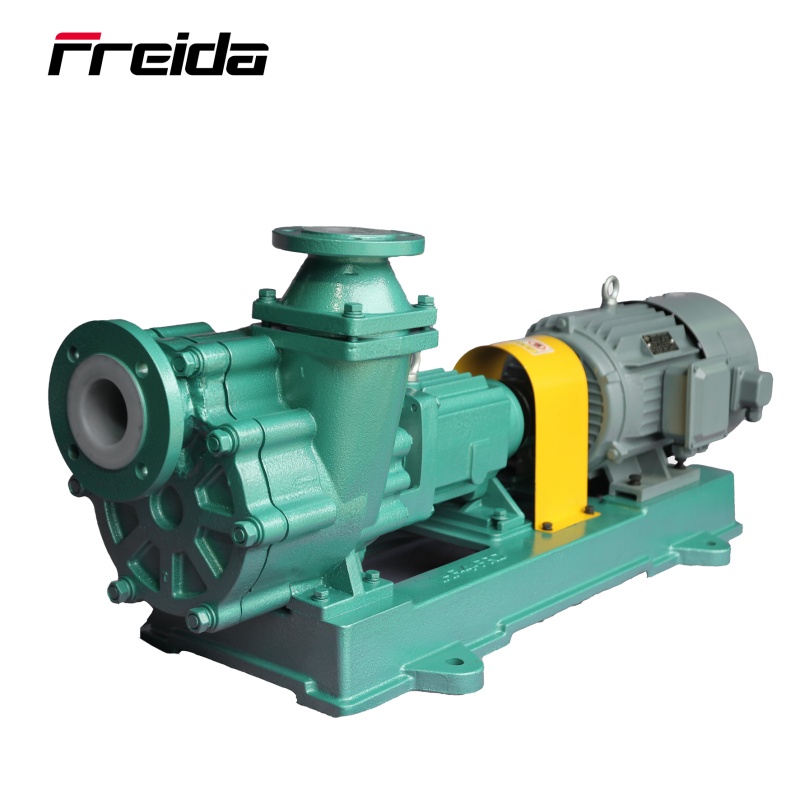

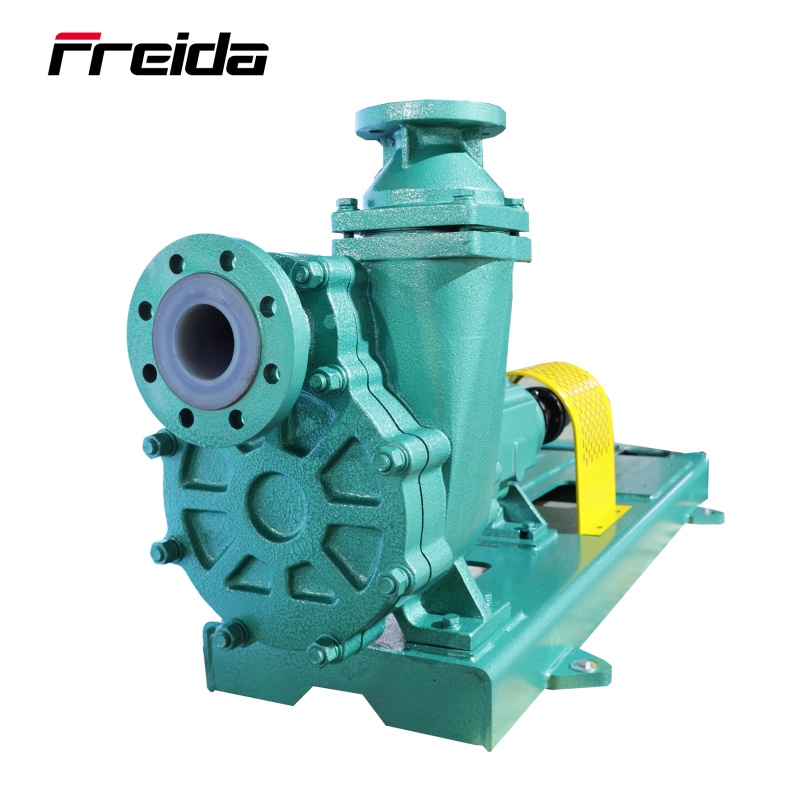

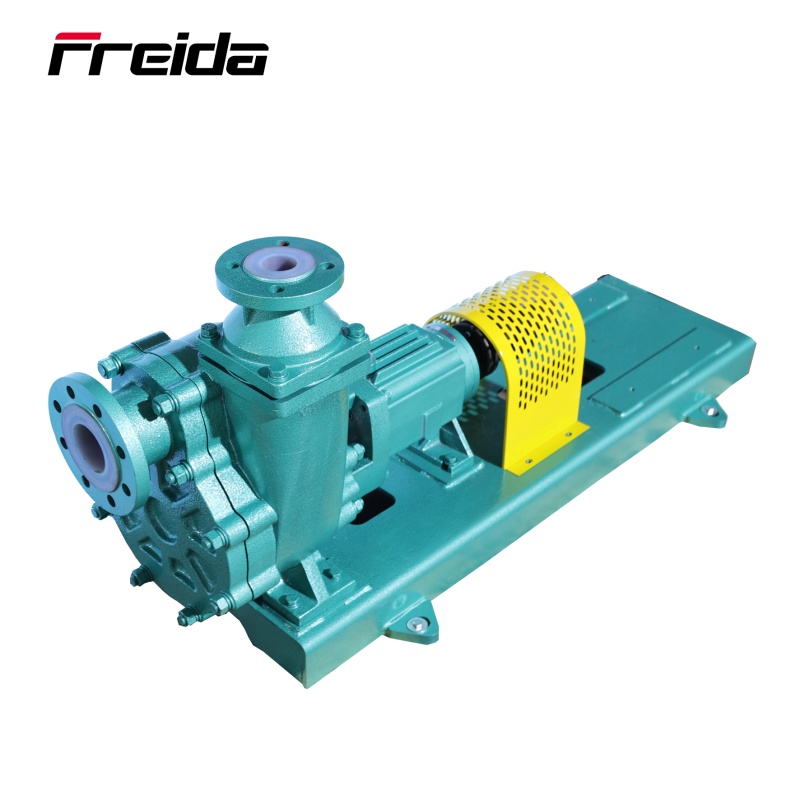

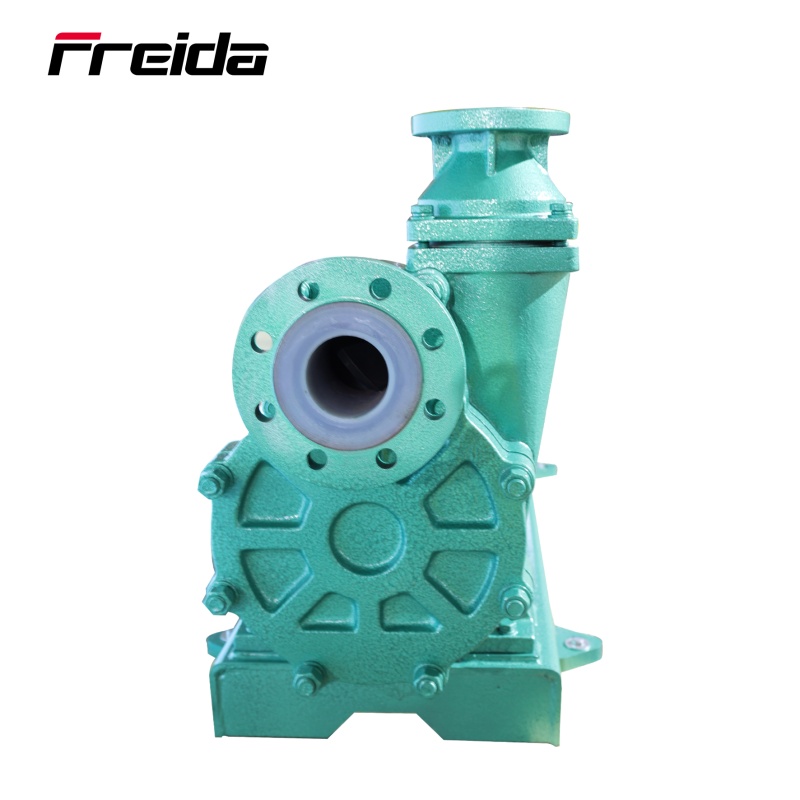

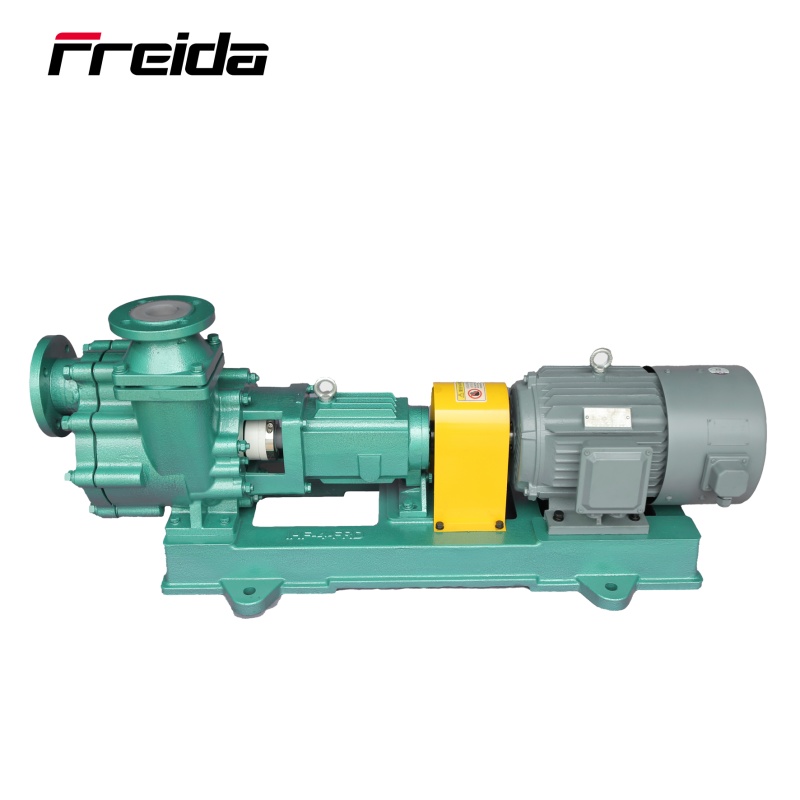

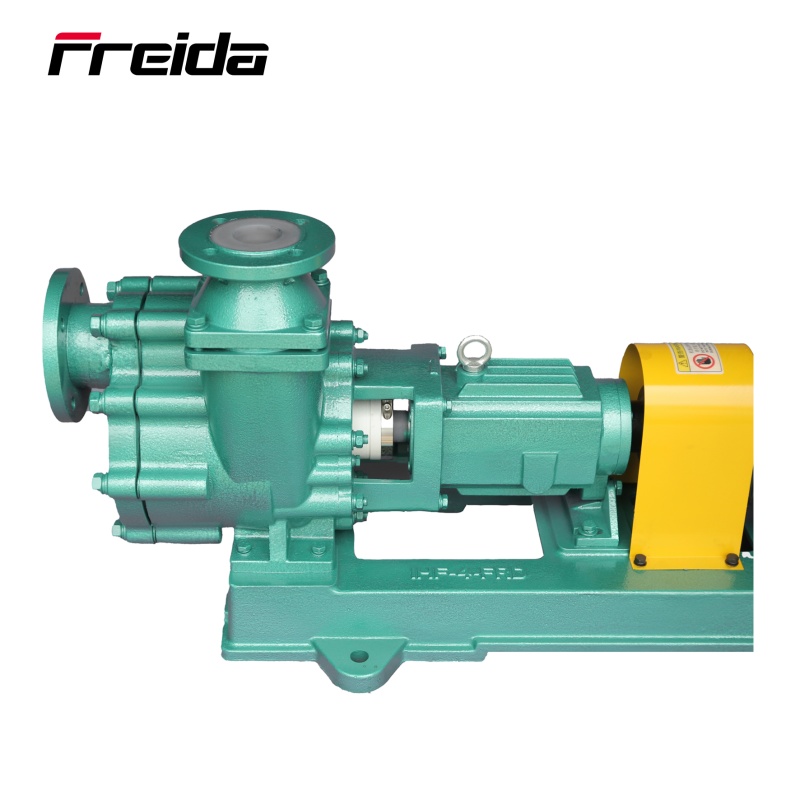

FZB Fluorine Plastic Self-Priming Centrifugal Pump

Applicable temperature:-20° C~ 80° C

FZB series fluorine plastic self-priming pump flow components are made of fluorine plastic. shaft seal uses advanced exterior mounted bellows mechanical seal, easily adjustable. It is a new generation of strong corrosion-resistant self-priming pump, a height of 3-4 meters (medium for water), Solve the ordinary centrifugal pump installed intrusion, irrigation water, and mounted bottom valve problems. Widely used in the pickling process, acid and alkali pesticides, paper making, electronics, and other industries.

+ Contact us + Catalogue Download

Product Description

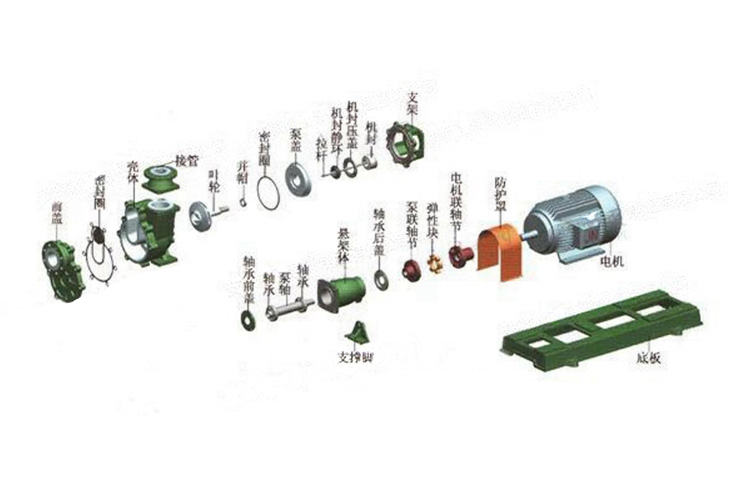

FZB Structure and material & Model sense

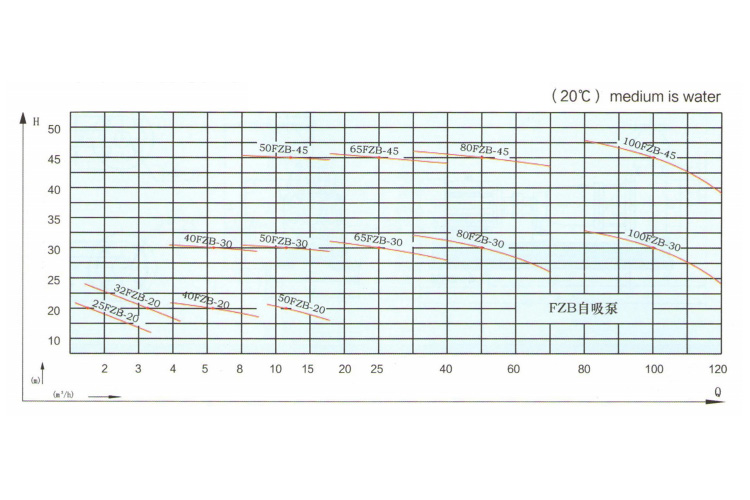

(n=2900r/min)Performance Curve Diagram

Model and technical date

Model Rev=2900r/min     Medium density=1000kg/m³
Flow
(m³/h)		 Pump head
(m)		 η
(%)		 Inlet
(mm)		 Outlet
(mm)		 Npsh
(m)		 Power
(kw)		 Self-priming
height(m)		 Self-priming
time(s)		 Weight
(kg)
25FZB-20 1  23  20  Φ25 Φ25 3.0  1.5  1.5  150  65
1.6  20
2  19
32FZB-20 1.6  23  30  Φ32 Φ25 3.0  2.2  1.5  150  70
3.2  20
4.5  18
40FZB-20 5  22  42  Φ40 Φ32 3.0  2.2  3  150  70
6.3  20
7  18
40FZB-30 5  32  48  Φ40 Φ50 3.0  4  3  150  70
6.3  30
7  28
50FZB-20 10  22  42  Φ50 Φ40 3.0  2.2  3  150  70
12.5  20
15  18
50FZB-30 10  33  48  Φ50 Φ50 3.5  4  3  180  160
12.5  30
15  25
50FZB-45 10  47  35  Φ50 Φ32 3.5  7.5  3  200  210
12.5  45
15  40
65FZB-30 15  32  55  Φ65 Φ50 4.0  7.5  3  180  210
25  30
30  25
65FZB-45 15  47  42  Φ65 Φ40 4.0  11  3  200  300
25  45
30  40
80FZB-30 35  33  58  Φ80 Φ65 4.5  11  3  180  284
50  30
60  25
80FZB-45 35  47  53  Φ80 Φ65 4.5  15  3  200  330
50  45
60  40
100FZB-30 60  35  68  Φ100 Φ80 6.0  18.5  3  250  300
100  30
110  28
100FZB-45 60  47  55  Φ100 Φ80 6.0  30  3  250  500
100  45

Install size/flange size

Model Outside and installing size Inlet flange size Outiet flange size
L S P f W T H h X C a b
n-Φd
k		 g i n-Φt
40FZB-30 1150  590  255  207  390  350  535  330  90  40  150  110  4-Φ18 32  140  100  4-Φ18
50FZB-30 1085  600  292  205  350  330  510  342  90  50  165  125  4-Φ18 50  165  125  4-Φ18
50FZB-45 1225  650  312  200  440  385  615  410  112  50  165  125  4-Φ18 32  140  100  4-Φ18
65FZB-30 1280  650  350  255  440  385  525  342  98  65  185  145  4-Φ18 50  165  125  4-Φ18
65FZB-45 1400  740  355  225  500  435  645  425  114  65  185  145  4-Φ18 40  150  110  4-Φ18
80FZB-30 1360  735  368  215  490  440  550  370  110  80  200  160  8-Φ18 65  185  145  4-Φ18
80FZB-45 1360  735  368  215  490  440  550  370  120  80  200  160  8-Φ18 65  185  145  4-Φ18
100FZB-30 1555  840  448  285  540  490  683  440  130  100  220  180  8-Φ18 80  200  160  8-Φ18
100FZB-45 1680  945  450  285  590  535  723  480  130  100  220  180  8-Φ18 80  200  160  8-Φ18

Install size/flange size

Model Outside and installing size Inlet flange size Outlet flange size
L S P f W T H h X C a b
n-Φd		 k g i
n-Φt
25FZB-20 860  450  250  114  330  285  405  247  68  25  120  85  4-Φ13 25  120  85  4-Φ13
280  235
32FZB-20 860  450  250  114  325  285  405  247  68  32 140  100  4-Φ13 25  120  85  4-Φ13
280  230
40FZB-20 1020  600  255  207  390  350  532  327  94  40  150  110  4-Φ18 32  140  100  4-Φ18
50FZB-20 1020  600  260  207  390  350  532 327 94  50  165  125  4-Φ18 40  150  110 4-Φ18
