WFB Series without Sealing Automatic Self-Priming Pump

WFB series non-sealed self-priming pump adopts an "interlocking" multi-sided centrifugal sealing device, with no "running, bubbling, dripping, leakage" worry. Because there is no sealing device friction and no wear during operation, the service life is several times longer than that of similar products. The pump has temperature resistance, pressure resistance, wear-resistant "one drainage, lifetime self-priming" and other functions, self-priming performance is reliable, especially the use of an "electric air control valve" with reliable operation, easy to disassemble, easy to install and so on. The pump is made of stainless steel, reinforced polyurethane, cast steel, and other materials, with low vibration, low noise, and easy disassembly. It is widely used in electronics, electric power, chemical industry, metallurgy, medicine, food, electroplating, environmental protection, consumer, municipal, water purification, national defense, and military industry, textile printing and dyeing, adjudication and mineral processing, civil construction, and other industries, and is well received by users.

+ Contact us + Catalogue Download

Product Description

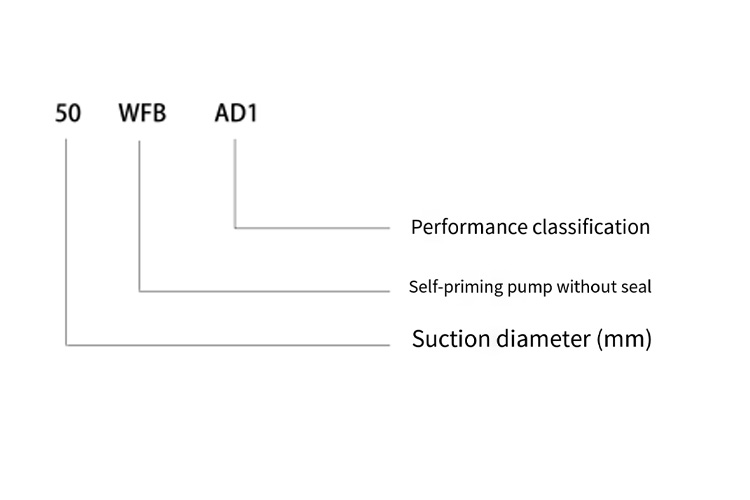

WFB Structure and material & Model sense

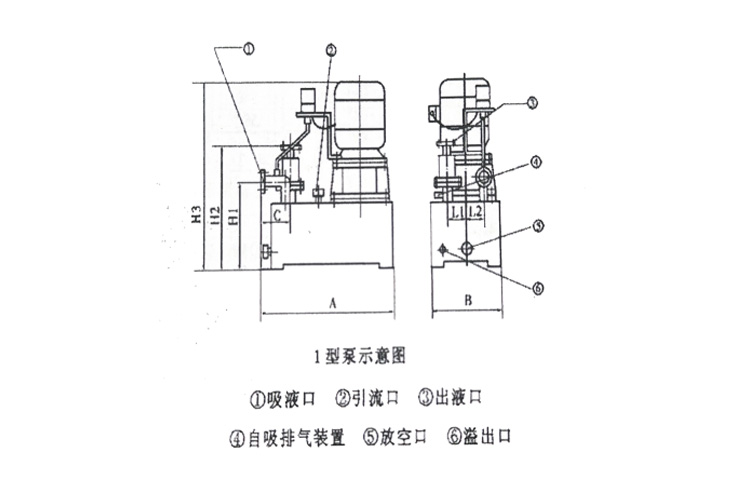

Structure and material

Model and technical date

Model	Rotating speed n r/min	Flow Q m³/h	Total lift H m	Conveying motor			Allowed suction depth ≤m	Suction bore mm	Release bore mm	Weight kg
				Model	kw	V
16WFB-A	2900	0.75	8	Y2-80M1-2	0.75	380	2.5	16	10	75
		1.1	6.5
		1.5	5.5
25WFB-A	2900	3.6	25	Y2-100L-2	3	380	3.5	25	20	110
32WFB-A	2900	4.5	13	Y2-90S-2	1.5	380	3	32	25	99
		6.5	10.5
		9	8
40WFB-A	2900	6.5	25	Y2-112M-2	4	380	4	40	32	140
		8.5	23
		10	21
40WFB-A	2900	13.5	18	Y2-100L-2	3	380	4	40	0O U	140
40WFB-A₂	2900	5	15	Y2-90L-2	2.2	380	4	40	32	125
		8	13
		10	11
40WFB-A₃	2900	14	8	Y2-90L-2	2.2	380	4	40	32	125
50WFB-A	2900	7.5	28	Y2-132S1-2	5.5	380	5	50	40	205
		12.5	26
		15	24.5
50WFB-A,	2900	10.5	20.5	Y2-100L-2	3	380	5	50	40	170
50WFB-AD	1450	5	11	Y2-90S-2	1.5	380	4	50	40	149
		6.3	10
		7.5	9
50WFB-AD	1450	10	6	Y2-90S-2	1.5	380	4	50	40	149
50WFB-B	2900	10	40	Y2-160M1-2	11	380	5	50	40	215
		11	38
		15	35
50WFB-	2900	7	33	Y2-132S2-2	7.5	380	5	50	40	205
		12	31
		15	29
50WFB-B	2900	10	26.5	Y2-112M-2	4	380	5	50	40	185
50WFB-B	2900	5	15	Y2-90L-2	2.2	380	4	50	40	150
		6.4	14
		7.5	12.5
50WFB-C	2900	8.5	58	Y2-160M2-2	7.5	380	5	50	40	240
		12	56
		15	54
50WFB-C	2900	10	46	Y2-160M1-2	15	380	5	50	40	215
		12	40
50WFB-CD	1450	5	19	Y2-100L-2	3	380	4	50	40	170
		6	18
		8	17
50WFB-E	2900	7.5	85	Y2-180M-2	18.5	380	5	50	40	260
		12	80
		15	75
50WFB-E	2900	10	68	Y2-160L-2	15	380	5	50	40	250
		12	62
		15	55
50WFB-E₂	2900	3.5	26	Y2-112M-2	3	380	4	50	40	170
		6.3	25
		7.5	24
65WFB-A	2900	15	27	Y2-132S2-2	7.5	380	4	65	50	260
		20	26
		25	24
65WFB-A,	2900	21	20	Y2-132S1-2	5.5	380	4	65	50	260
65WFB-AD	1450	7	12	Y2-100L-2	3	380	4	65	50	200
		12	11
		15	9
65WFB-B	2900	15	41	Y2-160M1-2	11	380	5	65	50	270
		25	38
		30	34
65WFB-B.	2900	20	26		7.5	80	5	65	50	250
65WFB-BD	1450	10	16	Y2-132S-2	4	380	5	65	50	230
		12	14
		15	13
65WFB-C	2900	15	58	Y2-160L-2	18.5	380	5	65	50	280
		25	56
		30	52
65WFB-C,	2900	22	45	Y2-160M2-2	15	380	5	65	50	265
65WFB-C₂	2900	7.5	19	Y2-112M-2	4	380	5	65	50	240
		12.5	18
		15	17
65WFB-E	2900	15	82	Y2-200L1-2	30	380	5	65	50	450
		25	80
		30	78
65WFB-E,	2900	21	64	Y2-160L-2	18.5	380	5	65	50	340
		20	55
65WFB-E₂	2900	7.5	27.5	Y2-132S2-2	7.5	380	5	65	50	280
		12.5	26
		15	24.5
65WFB-F	2900	15	127	Y2-250M-2	45	380	5	65	50	485
		25	125
		30	123
65WFB-F₁	2900	18	108	Y2-225M-2	45	380	5	65	50	485
		21.5	95
		23.5	85
65WFB-F₂	2900	7.5	38	Y2-132S2-2	7.5	380	5	65	50	270
		12.5	37
		15	36
65WFB-F₃	2900	7	34	Y2-132S1-2	5.5	380	5	65	50	260
		9	30
		12	26
80WFB-A	2900	30	28	Y2-160M1-2	11	380	6	80	65	380
		50	26
		60	24
		70	20
80WFB-AD	2900	15	11.5	Y2-112M-4	4	380	4	80	65	305
		25	11
		30	10.5
		38	9
80WFB-B	2900	40	40	Y2-160M2-2	15	380	5	80	65	395
		50	38
		60	35
		65	28
80WFB-BD	1450	15	15	Y2-132S-4	5.5	380	5	80	65	340
		25	14
		30	13
		35	11
80WFB-C	2900	30	59	Y2-180M-2	22	380	5	80	65	460
		50	55
		60	52
80WFB-C,	2900	45	38	Y2-160M2-2	15	380	5	80	65	400
		40	46
80WFB-C₂	2900	15	19	Y2-132S2-2	7.5	380	5	80	65	320
		25	18
		30	17
80WFB-CD	1450	21	14	Y2-132S-4	5.5	380	5	80	65	340
		25	12
80WFB-E	2900	30	84	Y2-200L2-2	37	380	5	80	65	480
		50	80
		60	76
80WFB-E,	2900	30	60	Y2-160L-2	18.5	380	5	80	65	400
		40	50
80WFB-E₂	2900	15	27	Y2-160M1-2	11	380	5	80	65	380
		25	26
		30	24
80WFB-E₃	2900	20	22	Y2-132S1-2	5.5	380	5	80	65	300
		22	18
80WFB-F	2900	30	128	Y2-250M-2	55	380	5	80	65	580
		50	120
		60	110
80WFB-F,	2900	26	103	Y2-225M-2	45	380	5	80	65	530
		30	95
		40	80
80WFB-F₂	2900	15	38	Y2-160M1-2	11	380	5	80	65	380
		25	36
		30	35
80WFB-F₃	2900	21	34	Y2-160M1-2	11	380	5	80	65	380
		23	30
		26	26
100WFB-A	2900	60	30	Y2-180M-2	18.5	380	5	100	80	560
		100	26
		110	22
		120	20
100WFB-AD	1450	30	12	Y2-132M-4	7.5	380	5	100	80	450
		40	11
		50	10
		60	9
100WFB-B	2900	60	40	Y2-180M-2	22	380	5	100	80	580
		80	36
		100	32
		120	28
100WFB-BD	1450	30	15	Y2-160M-4	11	380	5	100	80	520
		40	14
		50	13
		68	11
100WFB-BD	1450	110	16	Y2-160L-4	15	380	7	100	80	520
		130	10
		150	8
100WFB-C	2900	45	55	Y2-200L2-2	37	380	5	100	80	630
		80	48
		100	45
100WFB-C₁	2900	75	40	Y2-200L1-2	30	380	5	100	80	605
		85	35
100WFB-C₂	2900	40	20	Y2-160M1-2	11	380	5	100	80	520
		50	19
		60	18
100WFB-C₃	2900	40	16	Y2-132S2-2	7.5	380	5	100	80	500
		45	15
100WFB-E	2900	60	87	Y2-250M-2	55	380	5	100	80	720
		80	80
		100	75
100WFB-E,	2900	80	60	Y2-225M-2	45	380	5	100	80	680
		100	51
100WFB-E₂	2900	30	26	Y2-160M1-2	11	380	5	100	80	530
		50	25
		55	24
100WFB-E₃	2900	58	22	Y2-160M1-2	11	380	5	100	80	530
		62	18
100WFB-F	2900	60	133	Y2-280M-2	90	380	5	100	80	965
		80	125
		100	120
100WFB-F	2900	80	108	Y2-280S-2	75	380	5	100	80	820
		90	90
		100	80
100WFB-F₂	2900	30	40	Y2-160M2-2	15	380	5	100	80	550
		50	38
		60	36
100WFB-F₃	2900	40	33	Y2-160M1-2	11	380	5	100	80	530
		43	29
		46	26
125WFB-A	2900	100	55	Y2-250M-2	55	380	5	125	100	900
		150	50
		180	45
125WFB-A₁	2900	170	40	Y2-225M-2	45	380	5	125	100	860
		185	30
125WFB-A₂	2900	70	20	Y2-160M2-2	15	380	5	125	100	720
		80	19
		100	17
125WFB-AD	1450	105	16	Y2-160L-4	15	380	5	125	100	740
		110	15
125WFB-B	2900	120	86	Y2-315S-2	110	380	5	125	100	1150
		180	80
		220	72
125WFB-B,	2900	150	65	Y2-280S-2	75	380	5	125	100	1005
		170	60
125WFB-B₂	2900	80	26	Y2-180M-2	22	380	5	125	100	760
		100
		120	24
125WFB-B₂	2900	85	22	Y2-160L-2	18.5	380	5	125	100	730
		90	20
125WFB-C	2900	160	132	Y2-315L1-2	160	380	5	125	100	1580
		180	125
		200	120
125WFB-C₁	2900	180	108	Y2-315S-2	110	380	5	125	100	1270
		190	93
		208	80
125WFB-C₂	2900	80	40	Y2-200L1-2	30	380	5	125	100	790
		100	38
		120	36.5
125WFB-C₃	2900	92	23	Y2-160L-2	18.5	380	5	125	100	750
		85	26
		80	29
125WFB-E	1450	70	52	Y2-200L2-2	37	380	5	125	100	820
		90	50
		110	48
125WFB-E₁	2900	90	45	Y2-200L1-2	30	380	5	125	100	790
		95	40
125WFB-E₂	2900	85	36	Y2-180M-2	22	380	5	125	100	770
150WFB-A	2900	120	28	Y2-200L1-2	30	380	5	150	125	990
		185	26
		200	23.5
		240	22.5
150WFB-AD	1450	160	20	Y2-180L-4	22	380	5	150	125	960
150WFB-B	1450	156	40	Y2-225M-2	45	380	5	150	125	1060
		180	36
		225	30
150WFB-B₁	1450	160	34	Y2-200L2-2	37	380	5	150	125	1020
		180	29
		195	26
150WFB-BD	1450	175	32	Y2-225M-4	45	380	5	150	125	1080
		220	29
		260	25
150WFB-BD,	1450	120	55	Y2-280S-4	75	380	5	150	125	1205
		200	50
		240	45
150WFB-C	1450	180	45	Y2-250M-2	55	380	5	150	125	1100
		190	38
150WFB-C,	1450	165	36	Y2-250M-2	55	380	5	150	125	1020
200WFB-AD	1450	250	26.5	Y2-250M-4	55	380	5	200	150	1415
		330	25
		350	23.5
200WFB-AD	1450	300	22	Y2-225M-4	45	380	5	200	150	1375
200WFB-AD₂	1450	330	19	Y2-225S-4	37	380	5	200	150	1335
		320	15
		380	10
200WFB-BD	1450	240	42	Y2-280S-4	75	380	5	200	150	1520
		300	37
		350	33.5
200WFB-BD	1450	250	28.5	Y2-250M-4	55	380	5	200	150	1415
200WFB-BD₂	1450	310	25	Y2-225M-4	45	380	5	200	150	1375
		380	18
		450	13
		520	10
200WFB-CD	1450	350	55	Y2-315S-4	110	380	5	200	150	1790
		380	50
		420	45
200WFB-CD	1450	360	45	Y2-280M-4	90	380	5	200	150	1660
200WFB-CD₂	1450	300	40	Y2-280S-4	75	380	5	200	150	1520
		330	36
250WFB-AD	1450	290	26.5	Y2-250M-4	55	380	5	250	150	1556
		330	25
		360	23.5
250WFB-AD	1450	400	13	Y2-225M-4	45	380	5	250	200	1450
		430	8
250WFB-AD₂	1450	340	35	Y2-280S-4	75	380	5	250	200	1660
		360	33
		400	31
250WFB-AD₃	1450	500	28.5	Y2-280S-4	75	380	5	250	200	1660
		600	22.5
		720	18
250WFB-BD	1450	350	45	Y2-280M-4	90	380	5	250	200	1800
		380	40
		450	37
250WFB-BD	1450	300	50	Y2-280M-4	90	380	5	250	200	1800
		350	47
		380	45
250WFB-BD₂	1450	200	57.5	Y2-280M-4	90	380	5	250	200	1800
		260	55
		290	52.5
250WFB-BD₄	1450	400	30	Y2-280M-4	90	380	5	250	200	1800
		628	24.5
		700	20
300WFB-AD	1450	500	26.5	Y2-280M-4	90	380	5	300	250	1880
		550	25
		600	23.5
300WFB-AD	1450	370	42	Y2-280M-4	90	380	5	300	250	1988
		390	35
		400	33
		430	31
300WFB-AD₂	1450	600	30	Y2-315L2-6	132	380	5	300	250	2058
		650	25
		1000	18
300WFB-AD	1450	350	50	Y2-280S-4	110	380	5	300	250	2280
		400	47.5
		450	45
300WFB-BD	1450	300	57.5	Y2-315S-4	110	380	5	300	250	2280
		320	55
		345	52.5
300WFB-BD	1450	678	55	Y2-315L2-4	200	380	5	300	250	2480
		780	47.5
300WFB-BD₂	1450	900	30	Y2-315L1-4	160	380	5	300	250	2388
		740	40
		590	50
300WFB-BD₃	1450	600	57	Y2-315L2-4	185	380	5	300	250	2400
		750	45
		850	40
		978	35
300WFB-CD	1450	860	42.5	Y2-315L2-4	200	380	5	300	250	2480
300WFB-CD	1450	700	57.5	Y2-355M-4 Y450S1-4	220	380 10000	5	300	250	2508
		780	52
		890	45
350WFB-AD	1450	550	26.5	Y2-280M-4	90	380	5	350	300	2500
		600	25
		790	23.5
350WFB-AD,	1450	580	35	Y2-315M-4	145	380	5	350	300	2780
		690	33
		820	31
350WFB-AD₂	1450	450	42.5	Y2-315M-4	110	380	5	350	300	2630
		500	40
		550	37.5
350WFB-AD₃	980	500	50	Y2-315M-6	145	380	5	350	300	2785
		535	47.5
		590	45
350WFB-BD	1450	306	57.5	Y5002-2	110	10000	5	350	300	2630
		356	55
		400	52
350WFB-BD	1450	840	55	Y2-355M-4 Y450S2-4	250	380 10000	5	350	300	2785
		950	48
		1200	40
350WFB-BD₂	1450	886	57.5	Y2-355L-4 Y450S3-4	280	380 10000	5	350	300	3088
		980	52.5
		1186	45
300WFB-CD	1450	860	42.5	Y2-315L2-4	200	380	5	300	250	2480
300WFB-CD	1450	700	57.5	Y2-355M-4 Y450S1-4	220	380 10000	5	300	250	2508
		780	52
		890	45
350WFB-AD	1450	550	26.5	Y2-280M-4	90	380	5	350	300	2500
		600	25
		790	23.5
350WFB-AD	1450	580	35	Y2-315M-4	145	380	5	350	300	2780
		690	33
		820	31
350WFB-AD₂	1450	450	42.5	Y2-315M-4	110	380	5	350	300	2630
		500	40
		550	37.5
350WFB-AD₃	980	500	50	Y2-315M-6	145	380	5	350	300	2785
		535	47.5
		590	45
350WFB-BD	1450	306	57.5	Y5002-2	110	10000	5	350	300	2630
		356	55
		400	52
350WFB-BD	1450	840	55	Y2-355M-4 Y450S2-4	250	380 10000	5	350	300	2785
		950	48
		1200	40
350WFB-BD₂	1450	886	57.5	Y2-355L-4 Y450S3-4	280	380 10000	5	350	300	3088
		980	52.5
		1186	45
350WFB-BD₃	1450	860	42	Y2-315L2-4	200	380	5	350	300	2508
		1050	35
		1180	32
350WFB-CD	1450	1200	35	Y2-355M-4	220	380	5	350	300	2688
		1320	32	Y450S1-4		10000
350WFB-CD	1450	1156	40	Y2-355M-4	250	380	5	350	300	2886
		1280	35	Y450S2-4		10000
350WFB-CD	1450	1128	45	Y2-355L-4	280	380	5	350	300	3080
		1050	50	Y450S3-4		10000
350WFB-CD₃	1450	1000	57.5	Y2-355L-4	315	380	5	350	300	3285
		1200	50	Y450S4-4		10000
350WFB-ED	1450	900	30	Y2-355L1-4	160	380	5	350	300	2380
		1096	25
350WFB-ED	1450	1140	30	Y2-355L2-4	200	380	7	350	300	3400
		1370	23
350WFB-ED₂	1450	800	70	Y2-355L-4	315	380 10000	7	350	300	3780 5250
		900	65
		1100	56
350WFB-ED₃	1450	810	42	Y450S4-4	185	380	7	350	300	2850
		1200	37
		1400	30
350WFB-ED₄	1450	900	85	Y2-355L2-4	450	10000	7	350	300	7600
		1200	75
		1400	65
400WFB-ED	1450	1140	30	Y450S3-4	200	380	5	400	350	2600
		1370	25
400WFB-AD	980	1450	20	Y2-315M1-6	160	380	7	400	350	2860
		1520	18
		1650	16
		1850	15
400WFB-AD	980	1680	10	Y2-315L2-6	132	380	7	400	350	2150
400WFB-AD	980	1600	8	Y2-315L1-6	110	380	7	400	350	1800
400WFB-AD₃	980	2050	5	Y2-315L2-6	145	380	7	400	350	1700
400WFB-BD	980	1700	20	Y2-355M2-6	185	380	7	400	350	2500
		2085	15
		2300	12
400WFB-BD,	980	1600	22.5	Y2-355M2-6	200	380	7	400	350	3650
		2000	18
400WFB-BD₂	980	1880	25	Y2-355L-6 Y450S2-6	250	380 10000	7	400	350	3880 4960
		2226	20
		2400	15
400WFB-BD,	980	1700	30	YLV3551-6 Y450S3-6	280	380 10000	7	400	350	4100 5260
		2506	20
		2750	16
400WFB-CD	980	2380	8	Y2-355M1-6	160	380	7	400	400	2650
400WFB-CD	980	1880	12	Y2-315L2-6	145	380	7	400	400	2750
400WFB-CD₂	980	2280	12	Y2-355M1-6	160	380	7	400	400	2860
400WFB-CD₃	980	1905	18	Y2-355M2-6	200	380	7	400	400	3850
400WFB-ED	1450	1100	60	Y4501-4	355	10000	7	400	350	5780
		1200	57
		1250	55
400WFB-ED₁	1450	1600	45	Y4501-4	355	10000	7	400	350	5780
		1800	40
450WFB-A	2900	1745	110	Y5003-2	850	10000	7	450	400	12000
		2094	96
		2219	87
450WFB-AD	1450	1650	35	Y2-355L-4	315	380	7	450	400	4350
		2880	20	Y450S4-4		10000				5560
450WFB-AD₁	980	2980	5	Y2-315L1-6	110	380	7	450	450	2650
		2000	8
450WFB-B	2980	1497	92	Y5002-2	800	10000	7	450	400	11500
		1872	85
		2246	73
450WFB-BD	980	2825	12	Y2-355M2-6	200	380	7	450	450	3650
450WFB-BD	980	2500	8	Y2-315L2-6	132	380	7	450	450	2850
450WFB-CD	1450	1400	86	Y5001-4	630	10000	7	450	400	7600
		1700	74
		2000	59
450WFB-CD	1450	1400	68	Y4503-4	450	10000	7	450	400	6800
		1700
		2000	48
450WFB-CD₂	1450	1400	46	Y4502-4	400	10000	7	450	400	6400
		1700	40
		2000	32
450WFB-ED	1450	1440	52	Y4503-4	450	10000	7	450	400	6800
		1600	50
		1740	46
450WFB-ED	1450	1600	58	Y4505-4	560	10000	7	450	400	7200
		1800	55
		2000	52
500WFB-AD	980	2300	25	YLV4002-6 Y4501-6	315	380 10000	7	500	450	4500 5900
		2900	20
		3200	15
500WFB-AD₁	980	2600	20	YLV3551-6 Y450S3-6	280	380 10000	7	500	450	4270 5780
		2800	18
		3000	16
500WFB-BD	1450	1800	62	Y4504-4	500	10000	7	500	450	7000
		2100	58
		2350	50
500WFB-BD	980	1400	40	YLV4002-6 Y4501-6	315	380 10000	7	500	450	4500 5900
		1600	37
		2000	23
500WFB-BD₂	980	1418	51	Y5002-6	560	10000	7	500	450	9600
		2000	47
		2600	40
		2850	30
		3000	20
500WFB-BD₃	980	1760	55	Y5003-6	630	10000	7	500	450	9850
		2180	50
		2725	40
		3100	30
		3200	20
500WFB-CD	980	1850	27	YLV3551-6 Y450S3-6	280	380 10000	7	500	450	4270 5780
		2100	24
		2350	20
500WFB-CD	1450	1500	50	Y4503-4	450	10000	7	500	450	7500
		1900	45
		2200	40
500WFB-CD	980	2500	50	Y5004-6	710	10000	7	500	450	10240
		2700	45
500WFB-CD	980	1800	60	Y5004-6	710	10000	7	500	500	10240
		2000	55
600WFB-AD	980	3400	15	YLV3551-6	280	380	7	600	500	4380
		3150	10	Y450S3-6		10000				5940
600WFB-AD	1450	3240	60	Y5003-4	800	10000	7	600	500	11900
		3600	55
		3850	50
600WFB-AD₂	980	3200	40	Y5003-6	630	10000	7	600	500	9600
		3600	37
		3850	32
600WFB-AD₃	980	2700	32	Y4503-6	400	10000	7	600	500	6950
		3240	30
		3600	26
600WFB-BD	980	3150	10	Y2-355M2-6	200	380	7	600	500	3280
		3500	8
		3800	6
600WFB-BD	980	3850	38	Y5601-6	800	10000	7	600	500	11900
		4050	35
		4280	30
600WFB-CD	980	4020	5	Y4502-6	355	10000	5	600	500	5860
600WFB-CD,	980	3600	60	Y5602-6	850	10000	5	600	500	13000
		3850	55
		4080	50
600WFB-CD₂	1450	3420	71	Y5004-4	900	10000	7	600	500	13200
600WFB-CD₃	1450	3168	65	Y5004-4	850	10000	7	600	500	12700
600WFB-ED	1450	3168	47.4	Y5001-4	630	10000	7	600	500	10600
800WFB-AD	980	4520	5	Y4502-6	355	10000	7	800	800	6400
800WFB-BD	980	5480	5	Y5001-6	500	10000	7	800	800	9400
800WFB-BD	980	5000	39	Y5002-6	900	10000	7	800	600	12900
		5700	36
		6300	32
800WFB-BD₂	980	5000	27	Y5004-6	710	10000	7	800	600	10300
		5700	24
		6300	22
800WFB-CD	980	6850	5	Y5001-6	500	10000	7	800	800	9400

+ Understand detailed product parameters

We attach great importance to your letter and will reply to you as soon as possible.

About Us

As China WFB Series without Sealing Automatic Self-Priming Pump manufacturers and WFB Series without Sealing Automatic Self-Priming Pump company, Freida is a comprehensive enterprise integrating industry and trade, specializing in the production of various chemical pumps, including magnetic pumps, centrifugal pumps, submersible pumps, self-priming pumps, pipeline pumps, and corrosion-resistant and wear-resistant pumps. The enterprise adopts advanced computer-aided engineering analysis (CFD) technology, CNC machining technology, and strict testing and quality control systems to ensure the high quality of its products. As a domestic manufacturer of chemical pumps, Freida integrates diversified design, production, and sales, positioning itself in the high-end market with an annual output value exceeding 50 million yuan.

Freida products are mainly exported to multiple countries and regions around the world, including the United States, Germany, Japan, Spain, Italy, the United Kingdom, South Korea, Australia, and Canada, and have established cooperative relationships with numerous chemical plants, sewage treatment plants, and new energy plants, including several Fortune 500 companies. Through continuous and stable product quality and service, Freida has become an important chemical pump supplier for these enterprises in China, winning wide recognition in domestic and foreign markets.

Honor

Certificate
Certificate
Certificate
Certificate
Certificate
Certificate

News

Understanding the Different Types of Pipeline Pumps

Industry News 2025-09-10

Pipeline pumps are the heart of any fluid transportation system, providing the necessary energy to move liquids and gases over vast distances. From cr...
View More
Self-priming pump installation guide

Industry News 2025-09-02

A self-priming pump is a powerful and versatile piece of equipment, but its performance and longevity are entirely dependent on proper installation. U...
View More
A Guide to Magnetic Drive Pumps

Industry News 2025-08-26

Magnetic drive pumps, often referred to as mag-drive pumps, are a specialized type of pump designed to handle hazardous, corrosive, or high-purity flu...
View More
The Power of Centrifugal Pumps: From Homes to Industry

Industry News 2025-08-20

A centrifugal water pump is a ubiquitous and essential piece of machinery, playing a critical role in everything from municipal water supply systems t...
View More
What are the different types of chemical pumps?

Industry News 2025-08-13

Chemical pumps are specialized devices designed to transport corrosive, abrasive, or high-temperature fluids. They are widely used in various industri...
View More
How to choose a magnetic pump for my application?

Industry News 2025-08-05

Choosing the right magnetic pump (magnetic drive pump) is crucial for ensuring your system operates efficiently and safely. Magnetic pumps are known f...
View More

Contact Information

Tel: +86-15656392221
Whatsapp: 17729930222
Email: [email protected]
Add: No. 2, Wei Wu Road, Economic Development Zone, Jing County, Xuancheng City, Anhui Province

Get In Touch

You can contact to me using this form.

Quick Links

Company

Products

News

Wholesale WFB Series without Sealing Automatic Self-Priming Pump Company BACK TOP

Application Industry

Language

+86-15656392221

Submit feedback
