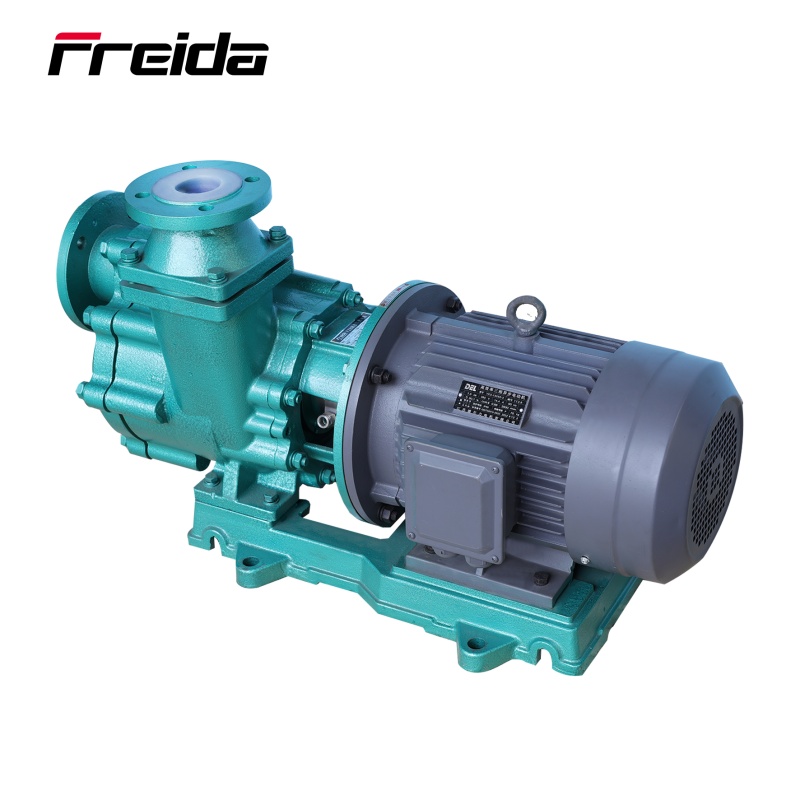

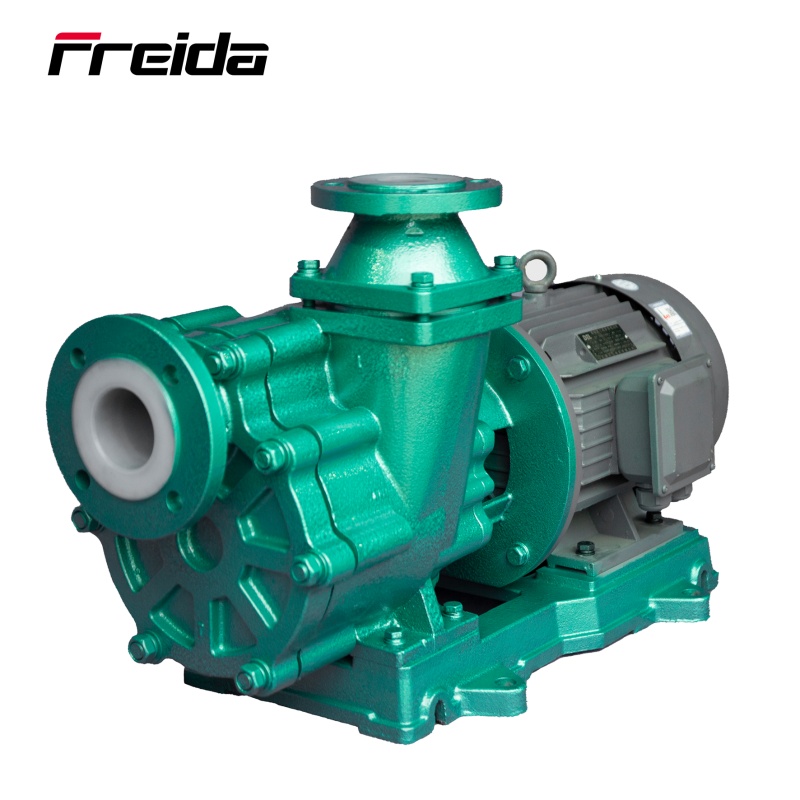

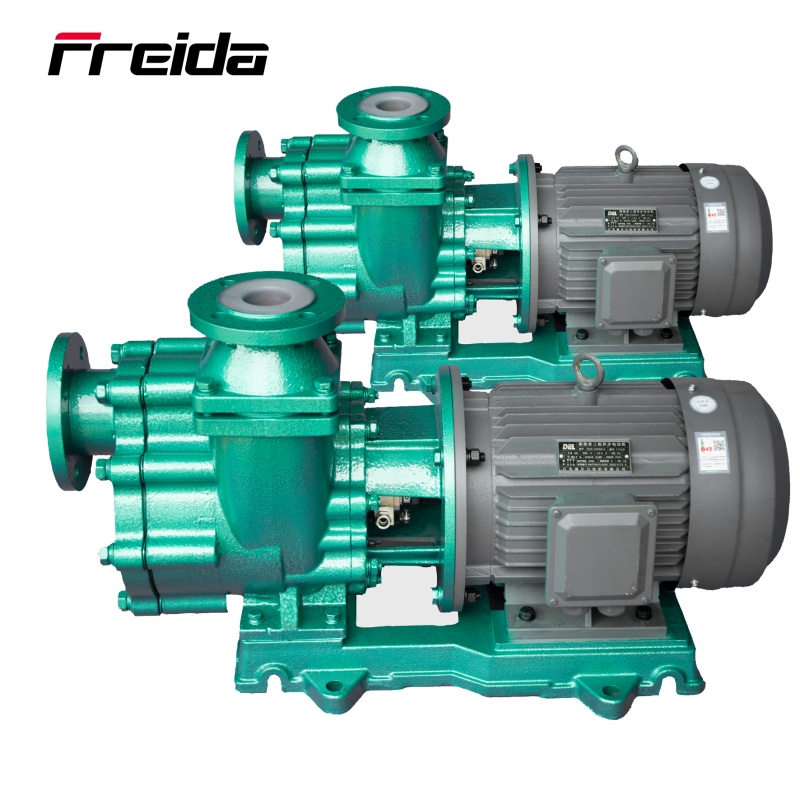

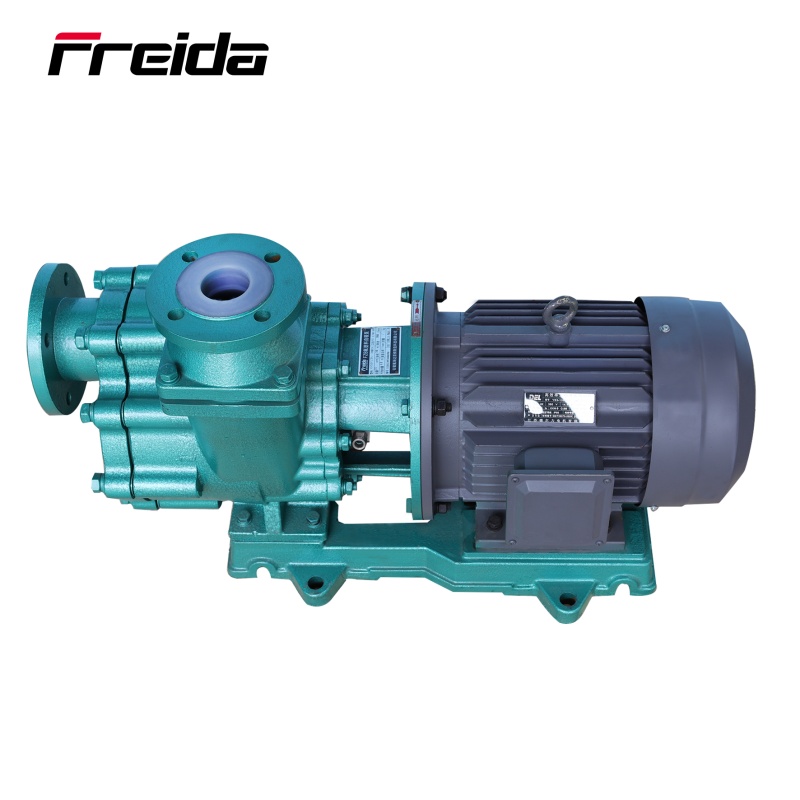

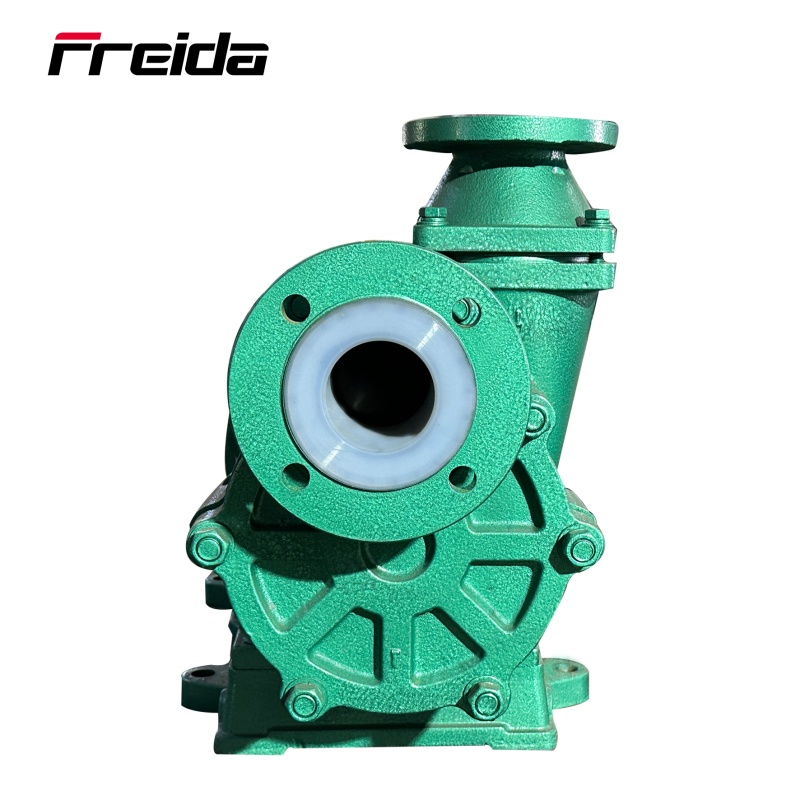

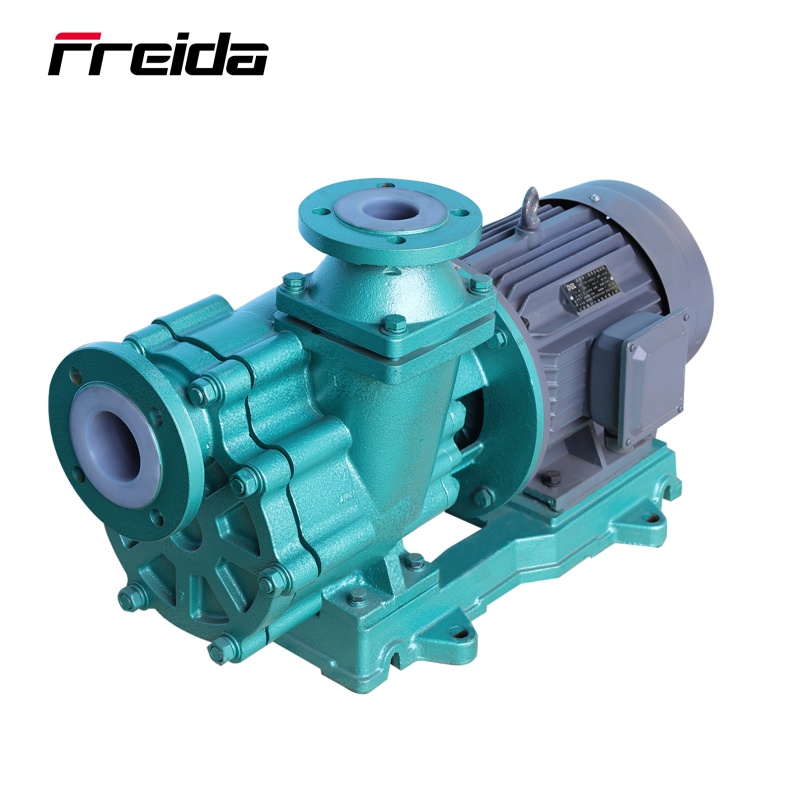

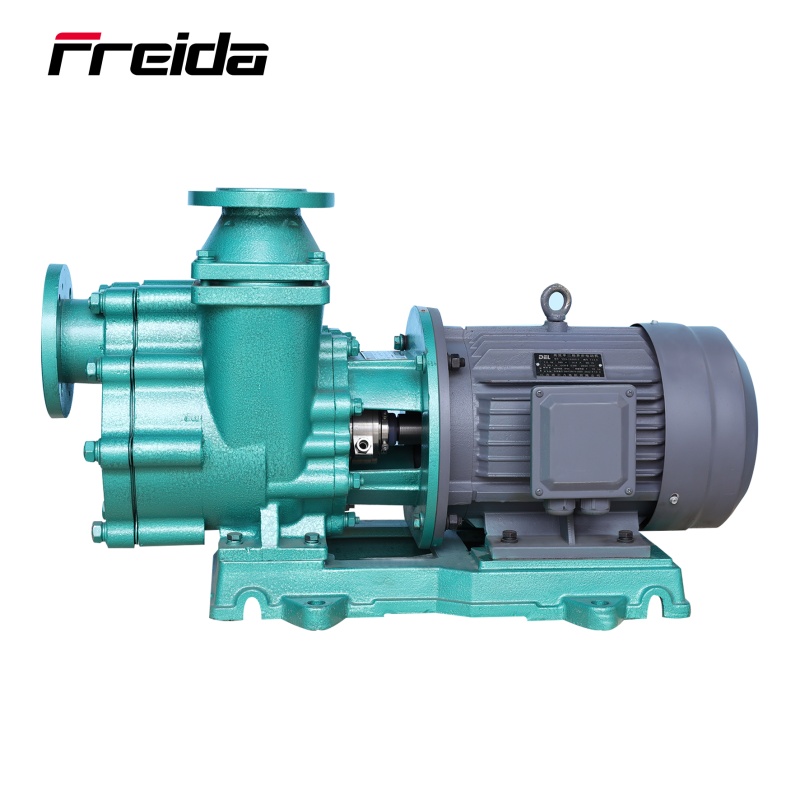

  • FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)
  • FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)
  • FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)
  • FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)
  • FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)
  • FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)
  • FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)
  • FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)
  • FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)
Self priming pump lined with fluorine

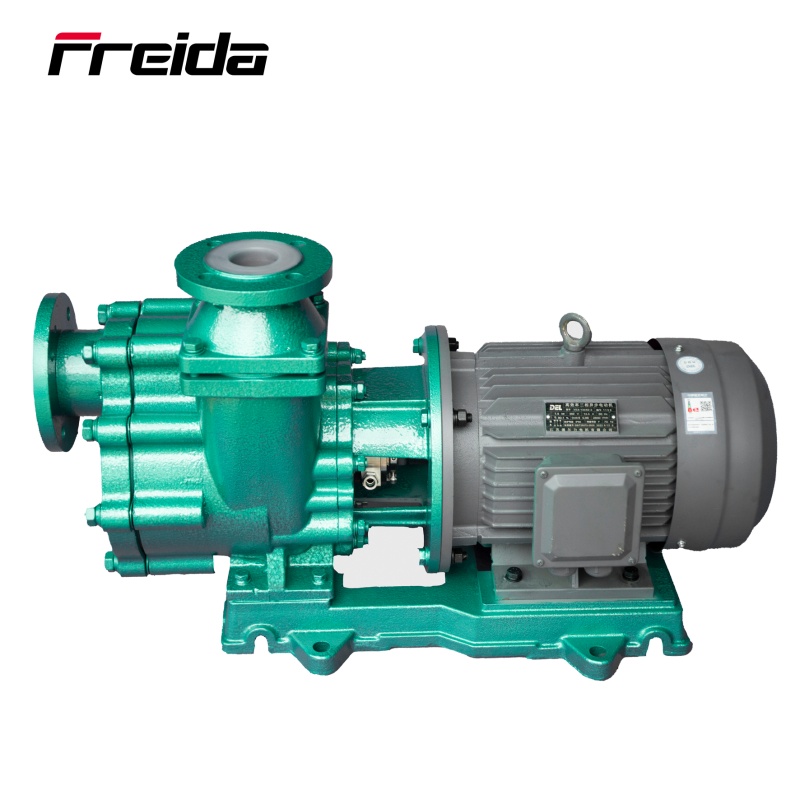

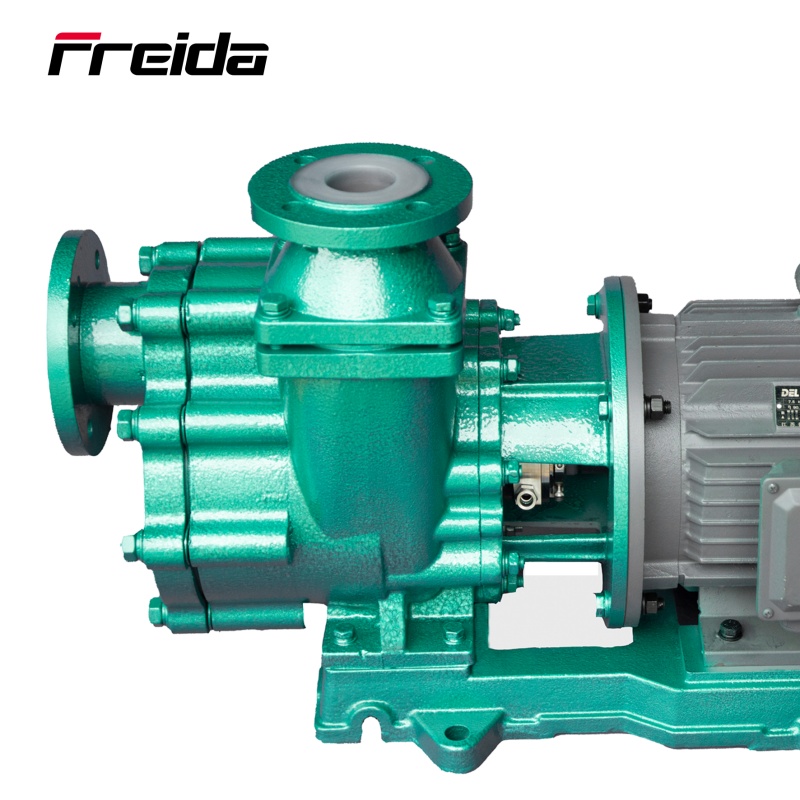

FZB-D Fluorine Plastic Self-Priming Centrifugal Pump (short bracket)

This product is widely used in chemical industry, pesticide, acid and alkali making, paper making, pickling process, electronics and other industries.
Applicable temperature: -20℃-80℃.

Patented products FZB series fluorine plastic alloy self-priming centrifugal pump, is the company's own research and development of patented products. The main structure is based on an IHF centrifugal pump, equipped with a volute self-priming system to realize its self-priming function. The overall structure is simple and versatile. Corrosion-resistant and pressure-resistant overcurrent parts are made of fluoroplastic and fluoroplastic alloys with excellent corrosion resistance. The matrix is made of metal material with strong pressure resistance. Designed for low-slot conditions, the pump is installed above the tank, and the installation operation, maintenance, and maintenance are very simple. The self-priming height can be determined within 1 to 3 meters depending on the density of the medium.

+ Contact us + Catalogue Download

Product Description

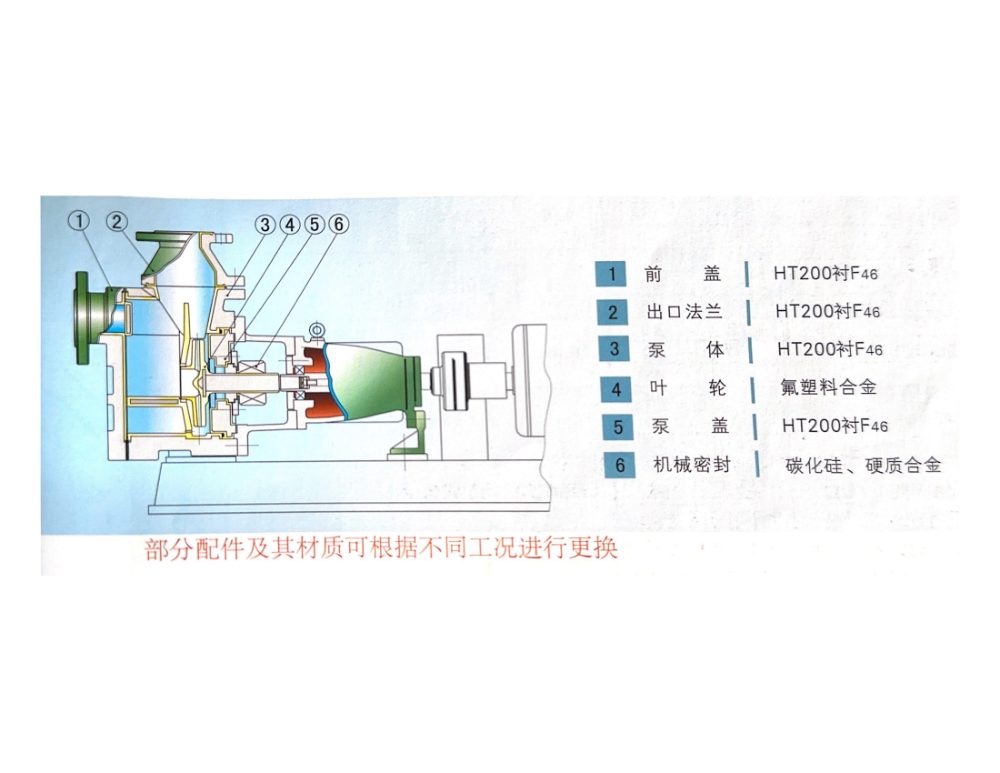

Structure and material

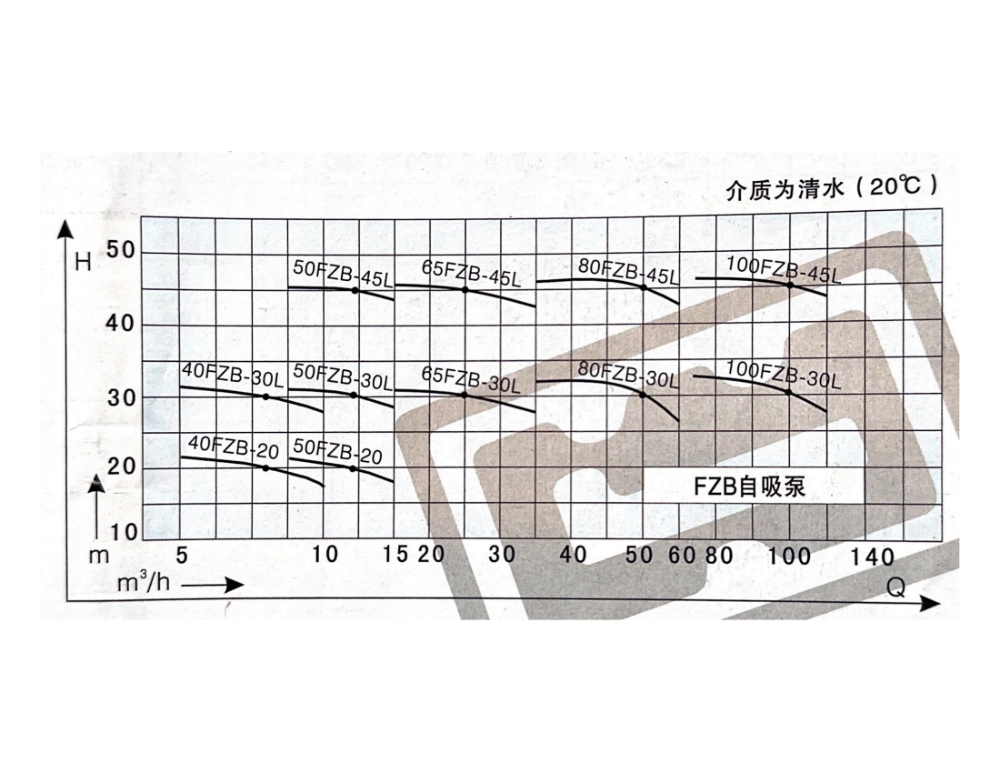

Performance curve

n=2900r/min

Serial number Model number Flow rate
m³/h		 Head
m		 Efficiency
%		 Cavitation allowance Import × export
mm

Imbibition height
m

 Imbibition time
S		 Motor power
kw		 Overall quality
kg
1  25FZB-20L 1.5  19  10  3.0  25×25 1  180  2.2  65
*3.6 18  20
6  16  30
2  40FZB-20 5  22  35  3.0  40×40 1  180  3  47
*8 20  42
12  17  40
3  40FZB-30L 5  32  24  3.5  40×50 3  150  4  160
*8 30  48
12  28  45
4  50FZB-20 8  22  35  3.0  50×50 1  180  3  47
*12 20  42
15  17  40
5  50FZB-30L 8  32  24  3.5  50×50 3  150  4  160
*12 30  48
15  28  45
6  50FZB-45L 8  47  24  3.5  50×32 3  150  7.5  210
*12 45  35
15  43  32
7  50FZB-70L 8  72  20  4.0  50×32 3  150  15  320
*12 70  26
25  65  39
8  65FZB-18L 15  20  40  3.5  65×50 3  180  4  178
*25 18  48
35  15  48
9  65FZB-30L 15  32  40  4.0  65×50 3 200  7.5  210
*25 30  55
35  27  48
10  65FZB-45L 15  47  30  4.0  65×40 3 180  11  300
*25 45  42
35  38  44
11  65FZB-70L 15  72  30  4.0  65×40 3 180  30  530
*25 70  41
35  65  42
12  80FZB-18L 30  19  42  3.5  80×65 3 180  5.5  210
*40 18  47
50  16  49
13  80FZB-30L 35  32  54  4.5  80×65 3 150  11  284
*50 30  58
60  25  48
14  80FZB-45L 35  47  45  4.5  80×65 3 180  15  330
*50 45  53
60  42  46
15  80FZB-70L 35  72  45  5.0  80×50 3 200  30  550
*50 70  50
60  65  43
16  100FZB-30L 65  32  54  6.0  100×80 3 150  18.5  390
*100 30  60
110  26  54
17  100FZB-45L 65  46  48  6.0  100×80 3 150  30  500
*100 45  55
110  40  48

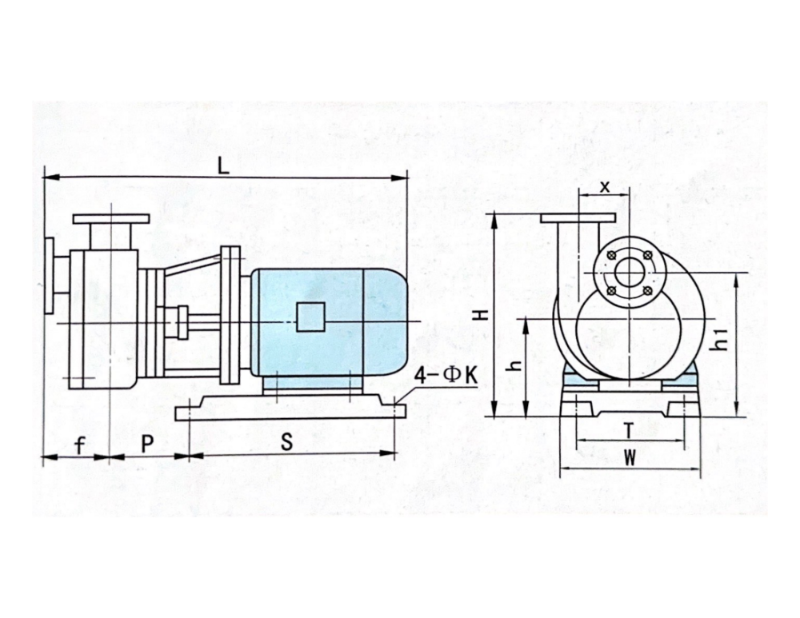

Model number Appearance and mounting dimensions Inlet flange size Outlet flange size
L S P f W  T H h h1 X k C b a n-Φd k i g n-Φt
40FZB-20 590  310  94  110  220  170  305  140  223  65  12  40  100  130  4-Φ13 40  100  130  4-Φ13
50FZB-20 590  310  94  110  220  170  305  140  223  65  12  50  100  130  4-Φ13 50  100  130  4-Φ13

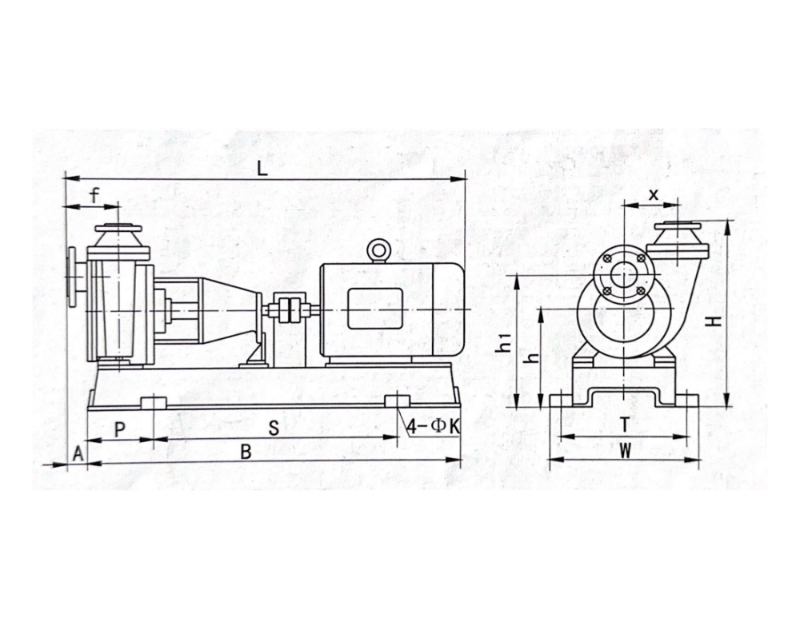

Serial number Model number Appearance and mounting dimensions
L B S A P f W T H h h1 X 4-φk
1  25FZB-20L 750  590  440  157   75  110  280  240  306  162  240  -60  4-Φ16
2  40FZB-30L 1150  975  590  140  155  205  390  330  508  232  342  90  4-Φ25
3  50FZB-30L
4  50FZB-45L 1190  1020  650  150  170  200  450  380  610  260  410  112
5  50FZB-70L 1350  1150  720  170  205  227  485  435  640  280  445  124
6  65FZB-18L 1145  975  590  180  150  235  390  330  552  272  372  90
7  65FZB-30L 1230  1020  650  190  170  250  450  380  520  232  342  98
8  65FZB-45L 1400  1150  720  165  205  223  485  435  642  260  425  114
9  65FZB-70L 1680  1430  940  130  245  220  610  550  720  320  510  147
10  80FZB-18L 1230  1020  650  200  170  255  450  375  530  272  372  98
11  80FZB-30L 1240  1150  720  165  205  210  485  435  520  260  370  110
12  80FZB-45L 1400  205  260  590  425  120
13  80FZB-70L 1680  1380  940  165  240  268  610  550  735  320  535  140
14  100FZB-30L 1476  1150  720  223  205  290  485  435  695  280  460  128
15  100FZB-45L 1758  1380  940  205  230  285  610  540  715  300  480   130

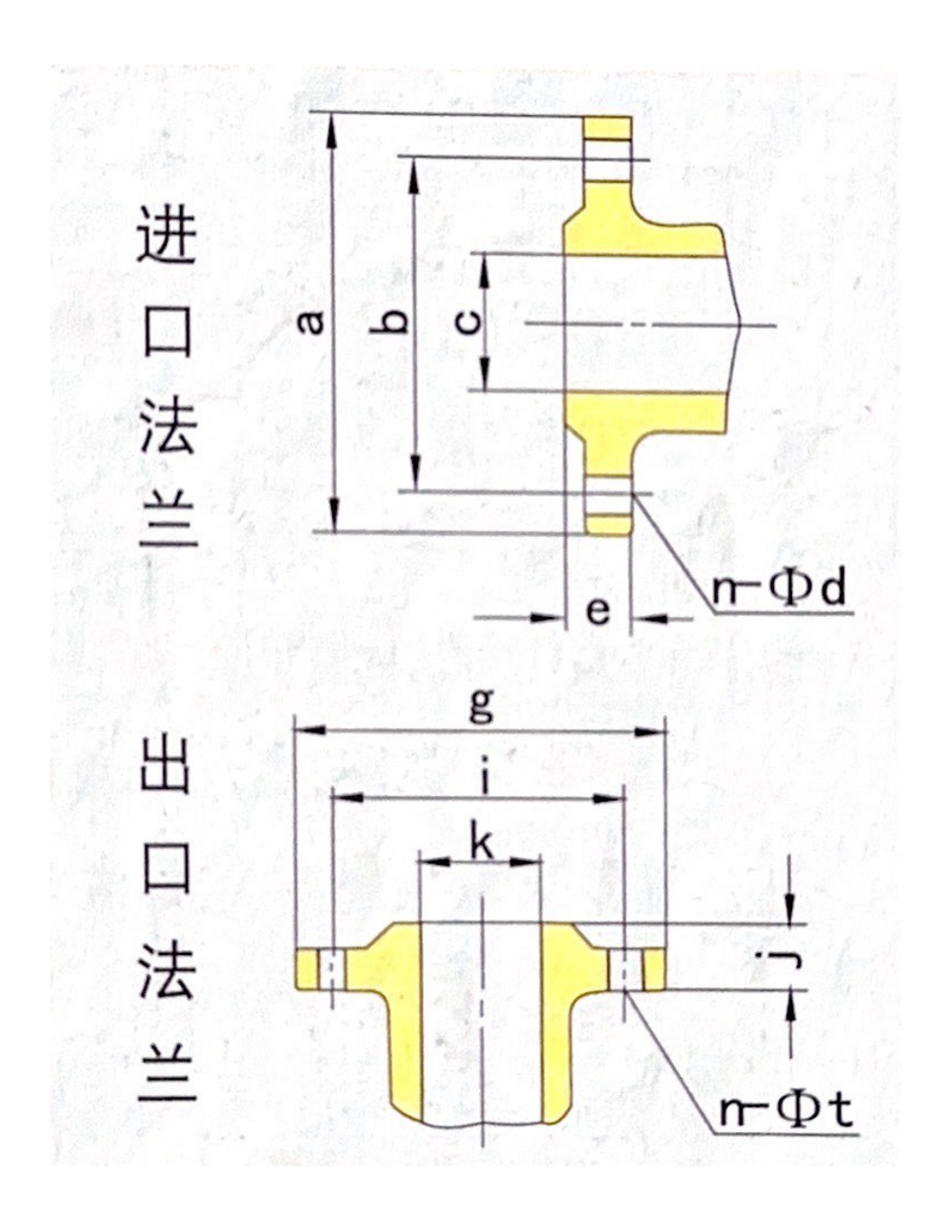

Serial number Model number Inlet flange size Outlet flange size
c a b e n-Φd k g i j n-Φt
1  25FZB-20L 25  120  85  18  4-Φ11 25  120  85  18  4-φ11
2  40FZB-30L 40  165  125  20  4-Φ18 50  165  125  20  4-Φ18
3  50FZB-30L 50
4  50FZB-45L 32  140  100
5  50FZB-70L
6  65FZB-20L 65  185  145  8-Φ18 50  165  125
7  65FZB-30L 50  165  125
8  65FZB-45L 40  150  110
9  65FZB-70L
10  80FZB-18L 80  200  160  65  185  145  8-Φ18
11  80FZB-30L
12  80FZB-451
13  80FZB-70L 50  165  125  4-Φ18
14  100FZB-30L 100  180  220  22  80  200  160  8-φ18
15  100FZB-45L
+ Understand detailed product parameters
