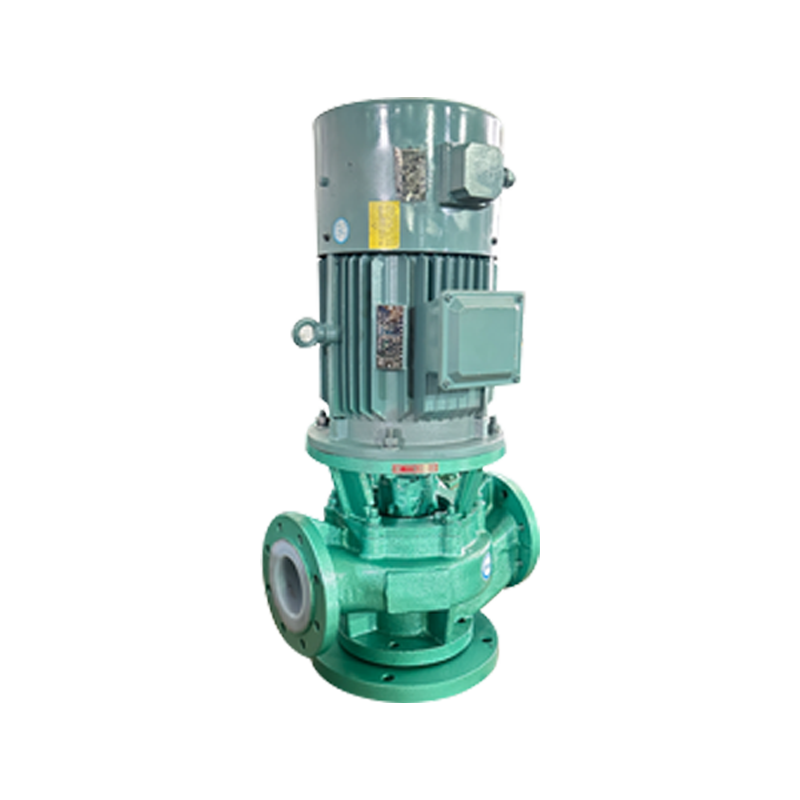

IHG-F Vertical Fluorine-Lined Pipeline Pump

Applicable temperature: -20 ° C ~150 ° C

The IHG-F fluorine-lined pipeline pump is a vertical structure with the same inlet and outlet diameter and is located on the same center line. The impeller is directly connected to the motor shaft, has high efficiency, energy saving, and low noise, and can effectively balance the radial and axial load generated by the pump operation; The shaft seal is made of an advanced external bellows mechanical seal, the ring is made of alumina ceramic, and the moving ring is made of PTFE filling material (specially equipped with other materials according to the special working conditions of users), which is wear-resistant and corrosion-resistant and has good sealing performance, which effectively increases the service life of the mechanical seal; Simple structure, easy maintenance, small footprint, in the repair and replacement of impeller, seals and other wearing parts, no need to remove the pipe. This product is widely used in petroleum, chemical industry, metallurgy, electric power, paper, flue gas desulfurization, dust removal, food pharmaceutical synthetic fiber, and other sectors.

+ Contact us + Catalogue Download

Product Description

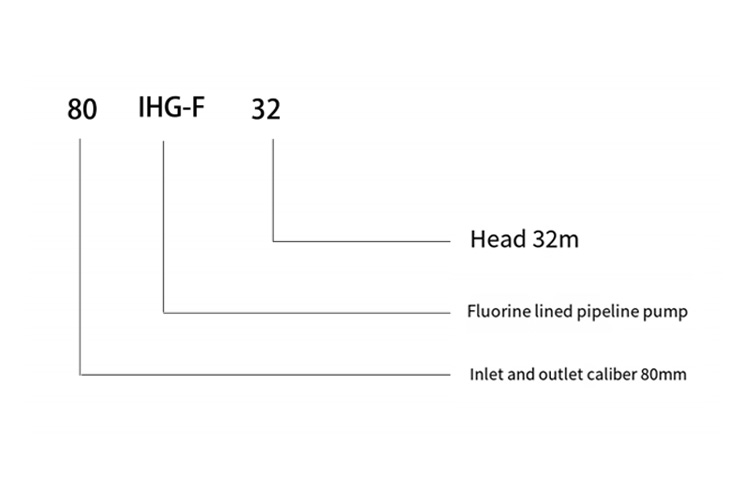

IHG-F Structure and material & Model sense

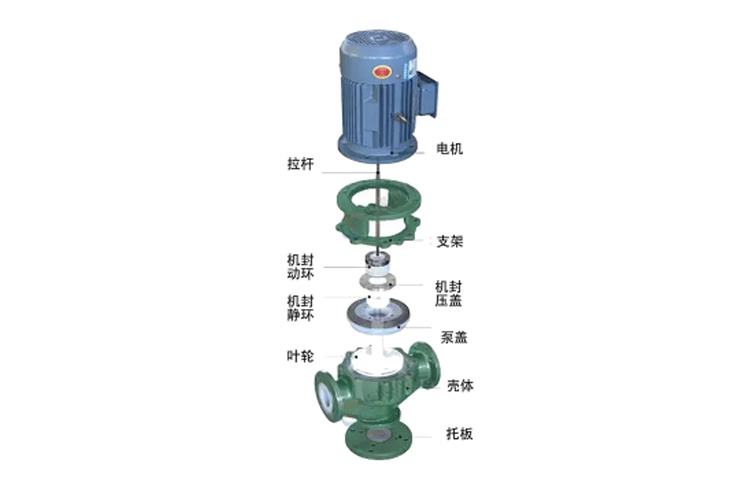

Structure and material

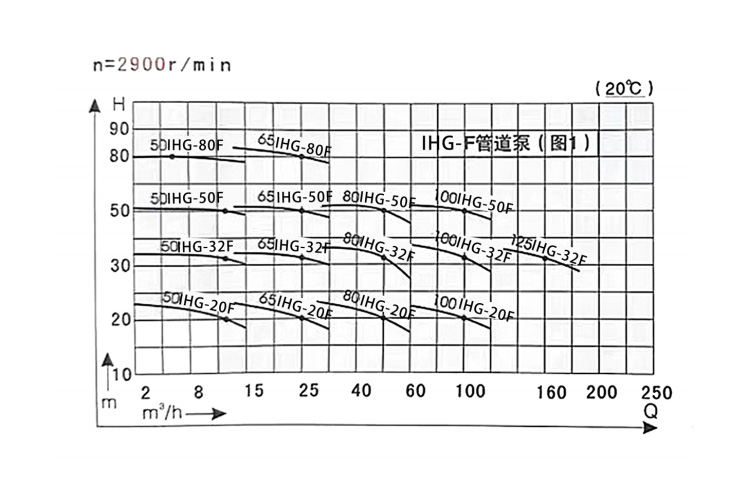

(n=2900r/min)Performance Curve Diagram

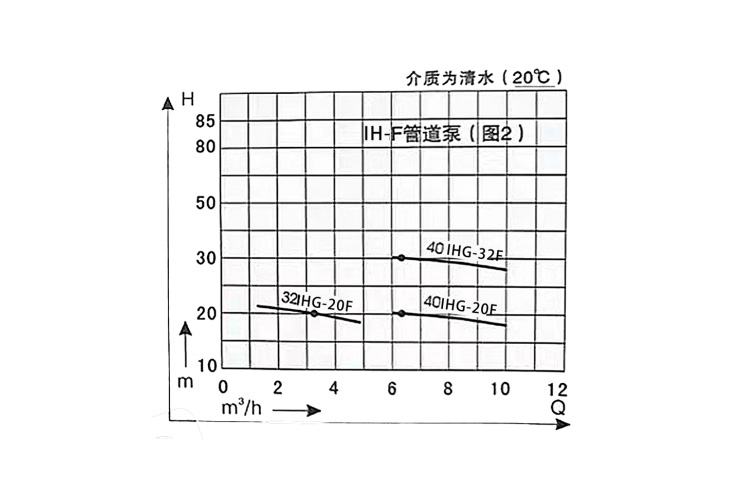

(n=2900r/min)Performance Curve Diagram

Model and technical date

Model Flow
(m³/h)		 Pump head
(m)		 η
(%)		 Cavitation allowance
m		 Inlet x outlet
mm		 Power
(kw)		 Weight
(kg)
32IHG-20F 2  20.5  15  2.5  32×32 1.1  59
*3.2 20  22
5.5  18  24
40IHG-20F 8  20  31  2.5  40×40 1.5  50
*6.3 20 30
10  18  32
40IHG-32F 8  32  31  3.5  40×40 3  82
*6.3 32  30
10  30  32
50IHG-20F
7		 22
40		 3.5  50×50 2.2  84
*12.5 20  45
15  16  42
50IHG-32F   33  33  3.5  50×50 4  88
*12.5 32  45
15  30  45
50IHG-50F 7 51 28 3.5  50×50 7.5  135
*12.5 50  40
15  49  48
50IHG-80F 7  80  20  5  50×50 11  180
*12.5 80  30
15  77  38
65IHG-20F 15 22 47 3.5  65×65 3  83
*25 20  52
35  16  57
65IHG-32F 15  33  38  3.5  65×65 5.5  118
*25 32  47
35  30  57
65IHG-50F 15 52 30 3.5  65×65 11  178
*25 50  45
35  46  42
65IHG-80F 15  82  30  3.5  65×65 18.5  220
*25 80  42
35  72  44
80IHG-20F 35 22 42 4  80×80 5.5  126
*50 20  55
60  18  60
80IHG-32F 35  33  45  4  80×80 11  180
*50 32  50
60  27  39
80IHG-50F 35 52 43 4  80×80 18.5  220
*50 50  55
60  45  43
100IHG-20F 65  22  57  4.5  100×100 11  192
*100 20  60
120  17  63
100IHG-32F 65 35 57 5  100×100 18.5  240
*100 32  62
110  26  65
100IHG-50F 65  51  54  5  100×100 30  340
*100 50  60
120  43  48

Installsize/flangesize

Model Appearance and mounting dimensions Inlet flange size Outlet flange size
H h L f W T A n-Φd C e n-Φd a b C e n-Φd
32IHG-20F 545  125  320  20  130  80  230  4-Φ18 32  20  4-M16 140  100  35  20  4-M16
40IHG-20F 580  125  320  20  130  80  230  40  21  150  110  40 21
40IHG-32F 650  135  340  20  130  80  230  40  21  150  110  40  21
50IHG-20F 615  145  330  20  130  80  230  50  21  165  125  40 21
50IHG-32F 670  145  340  20  130  80  230  50  21  165  125  50 21
50IHG-50F 755  150  424  25  160  100  280  4-Φ20 50  21  165  125  50  21
50IHG-80F 910  148  440  25  160  100  280  50  21  165  125  50  21
65IHG-20F 695  155  340  25  160  100  240  65  21  8-M16 185  145  65  21  8-M16
65IHG-32F 725  155  380  25  160  100  240  65  21  185  145  65  21
65IHG-50F 870  160  420  25  160  100  240  65  23  185  145  65  23
65IHG-80F 980  165  470  25  180  150  300  66
00		 23  185  145  65 23
80IHG-20F 735  170  420  25  160  100  260  80  23  200  160  80  23
80IHG-32F 930  170  440  25  160  100  260  80  23  200  160  80  23
80IHG-50F 945  175  460  25  160  100  260  80  23  200  160  80  23
100IHG-20F 950  185  440  25  195  140  300  4-Φ25 100  23  220  180  100  23
100IHG-32F 1020  210  470  25  195  140  300  100  23  220  180  100  23
100IHG-50F 1150  220  470  25  195  140  300  100  23  220  180  100  23
